Product Description

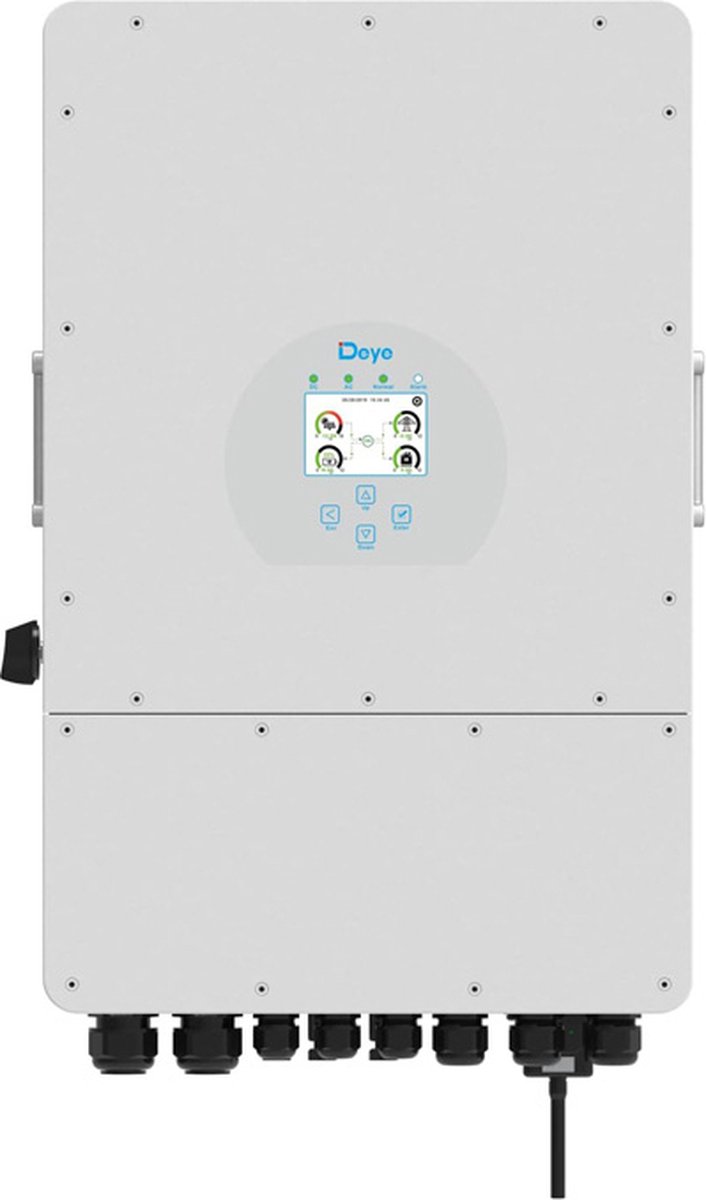

The Deye SUN-12K-SG04LP3-EU is a low voltage hybrid three-phase inverter with a 12 kW output. This inverter is suitable for both grid-connected and off-grid solar systems and offers a maximum efficiency of 97.6%.
The specifications of the Deye SUN-12K-SG04LP3-EU are:
- Type: three-phase hybrid inverter
- Battery support: Supports a 48V low voltage battery
- Design: Compact with high power density
- DC/AC ratio: Supports a ratio of 1.3
- Parallel functionality: Can connect up to 10 units in parallel for grid-connected and off-grid operations
- Charge/discharge current: 240A maximum
- PV String Input Data: Max. DC input power 15600W
- AC Output Data: Rated output 12000, maximum output 13200
- Energy Storage: Supports energy storage of diesel generators
- Time periods for loading/unloading: Six time periods
- Communication ports: CAN port (x2), RS485, RS232
- Smart monitoring: remote management platform
- Safety: Remote shutdown in case of accidents
- Noise level: Less than 45 dB
- Protection Class: IP65
- Weight and dimensions: 33.6 kg, 656x420x281 mm
