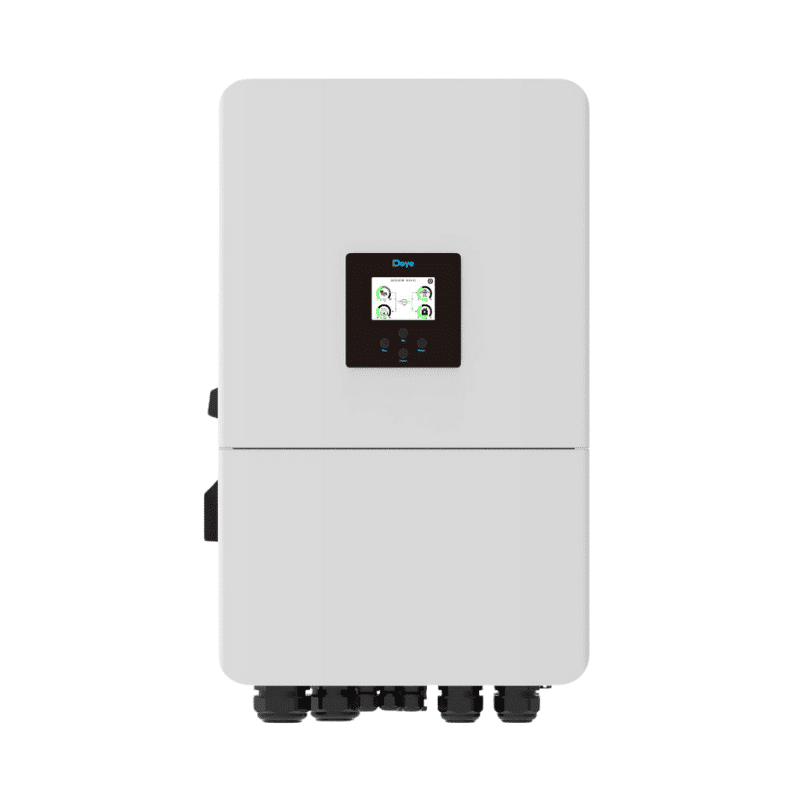

Deye | 20kW | low voltage | hybrid inverter| 3 phase | SUN-20K-SG05LP3-EU-SM2

The SUN-20K-SG05LP3-EU-SM2 is a 20 kW three-phase hybrid inverter suitable for both grid-connected solar PV systems and systems with 48 V battery storage. The inverter features two MPPT inputs, allowing optimal control of two separate PV strings. With a maximum DC input power of about 22-24 kWp and an MPPT voltage range of 160-650 V, it is suitable for medium to large installations. The AC connection is three-phase (3L+N+PE), making it suitable for homes with heavy connections and small business applications. With a maximum efficiency of about 97.6%, extensive protections and IP65 protection class, the inverter can be used reliably both indoors and outdoors. In addition, it supports emergency power, generator connection, monitoring via WiFi/LAN/4G and parallel switching to multiple units is possible for system expansion.
