The Dyness STACK100 is a flexible, modular energy storage system with high security and scalability. Ideal for both residential and commercial applications.

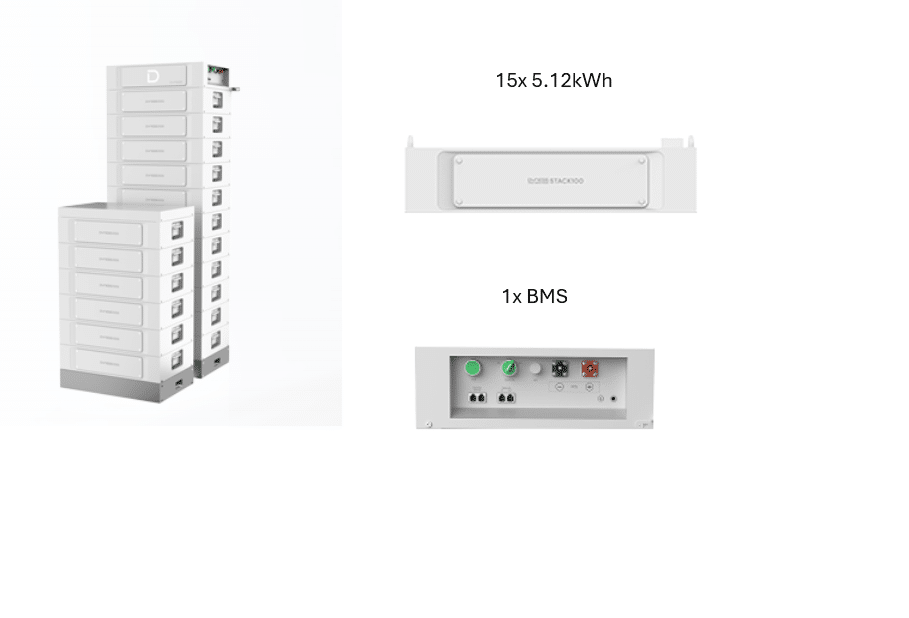

This set includes:
15x Dyness Stack 100 5.12kWh
1x Dyness Stack 100 BMS
Key features:
Built-in BMS, Wi-Fi, communication via CAN/RS485.
IP20 enclosure + 1C continuous charge/discharge.
Capacity per stack: 15.36-76.8 kWh (3 to 15 modules per cluster)
Expandability up to 12 clusters in parallel →921 kWh total
Safety & CertificationsCE, UN38.3, aerosol fire suppression system
Weight: 733KG
