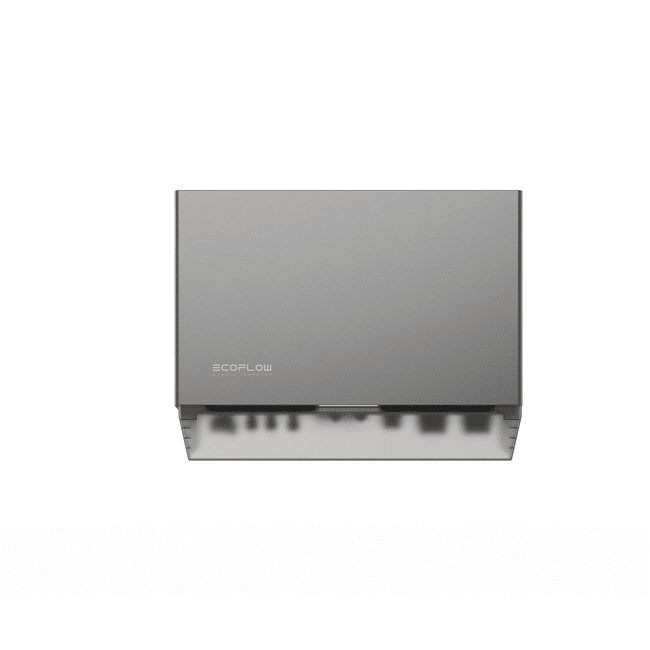

EcoFlow | PowerOcean 10K | Inverter
The EcoFlow PowerOcean 10 kW Hybrid Inverter is a three-phase grid-connected inverter with integrated backup functionality and battery storage support. Designed for residential and small commercial applications, this inverter is the core of the EcoFlow PowerOcean system.
With a rated AC power of 10 kW, two independent MPPT inputs and a maximum input voltage range of up to 1000 V, this inverter is suitable for medium to large PV configurations. The efficient MPPT trackers achieve up to 97.6% efficiency, ensuring optimal energy utilization under a variety of conditions.
In case of grid failure, the inverter automatically switches to battery operation. The switchover time is only a few milliseconds, ensuring that critical loads are fed without interruption. In backup mode, the system delivers up to 10 kW of power.
The enclosure is IP65-rated and equipped with passive convection cooling. This makes the inverter low-maintenance and suitable for both indoor and outdoor installation. Via Wi-Fi or LAN, monitoring and management is possible via the EcoFlow Energy App platform. The inverter supports OCPP 1.6-J and is suitable for integration into smart grids (SG Ready).
Technical specifications
- 3-phase
- Rated AC power: 10 kW
- 2 MPPT 2 IN
- Max. PV input voltage: 1000 V
- MPPT voltage range: 160 – 1000 V
- Start-up voltage: 160 V
- Max. current per MPPT: 16 A
- Max. DC short circuit current: 24 A
- Max. efficiency: 97.6%
- Protection rating: IP65
- Communications: Wi-Fi/LAN,
- Dimensions 588 × 380 × 175 mm
- Weight: 29.5 kg
- Operating temperature: -20 °C to +50 °C
- Warranty: 15 years
