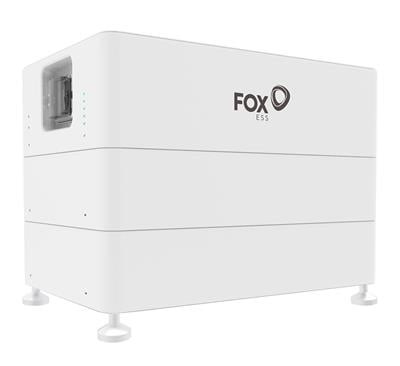

The Fox Cube ECS2900 is a modular lithium iron phosphate (LiFePO₄) battery designed for residential and commercial solar energy systems. Part of the FoxESS Energy Cube series, this battery is known for its efficiency, expandability and reliability.
This package is composed of the following products:
2 x FE-HV-ECS-2900-4A2C = ECS 2.88kWh HV Battery (Slave)
1 x FE-HV-ECM-2900-4A2C = ECS 2.88kWh HV Battery (Master)
- Expandable system: combine 1 master unit (CM2900) with up to 6 slave units (CS2900) for a total of up to 20.16 kWh.
- Plug-and-play installation: Easy-to-assemble system.
- Compatibility:Designed specifically for use with FoxESS high-voltage hybrid inverters.
Specifications:
- 2.88kWh capacity
- Scalable up to 20.16kWh
- 90% discharge depth
- Large temperature tolerance
- Easy installation
- CAN/RS485 communication
- High voltage
- Weight: 99.5 kg
- Dimension: 570 mm x 470 mm x 380 mm (width, height, depth)
Warranty: 10 years with registration, standard 5 years without registration
