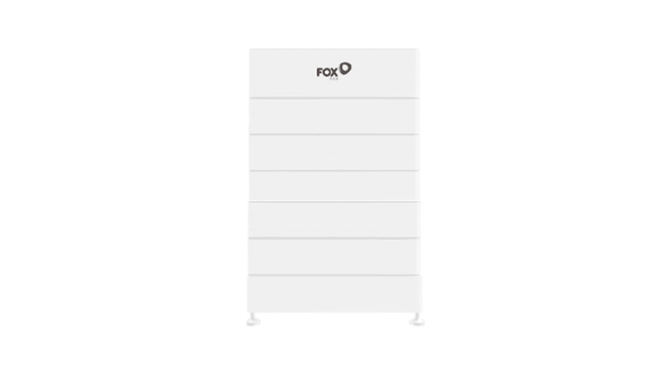

The Fox EQ4800 is a modular, high-voltage lithium iron phosphate (LiFePO₄) battery storage system from Fox ESS designed for use in solar energy systems. The system is scalable and provides flexibility for both residential and commercial applications
This package consists of:
1 x FE-HV-EQM-4800 = Fox EQ4800, 4.66kWh HV battery (Master)
6 x FE-HV-EQS-4800 = Fox EQ4800, 4.66kWh HV battery (Slave)
A minimum of one master module (EQM-4800) and one slave module (EQS-4800) is required for operation. The system can be expanded by up to 8 slave modules, resulting in a total storage capacity of 41.94 kWh. Installation should be performed by a qualified installer in accordance with local regulations.
Specifications
Capacity per module: 4.66 kWh
Scalability: Expandable up to a maximum of 41.94 kWh (1 master + 8 slave modules)
Depth of discharge (DoD): 90%
Rated energy: 4,450 Wh
Voltage: 313V
Dimension 570 mm x 1076 mm x 380 mm (W*H*D)
Weight: 278.5 KG
Communication: CAN/RS485
Charge/discharge capability:
- Continuous discharge: 2,225 W
- Maximum discharge (5 minutes): 4.480 W
- Peak discharge (15 seconds): 3.000 W
- Maximum charging capacity (5 minutes): 4.480 W
Temperature Range: Wide temperature range (specific values not listed)
Installation: Easy plug-and-play installation
