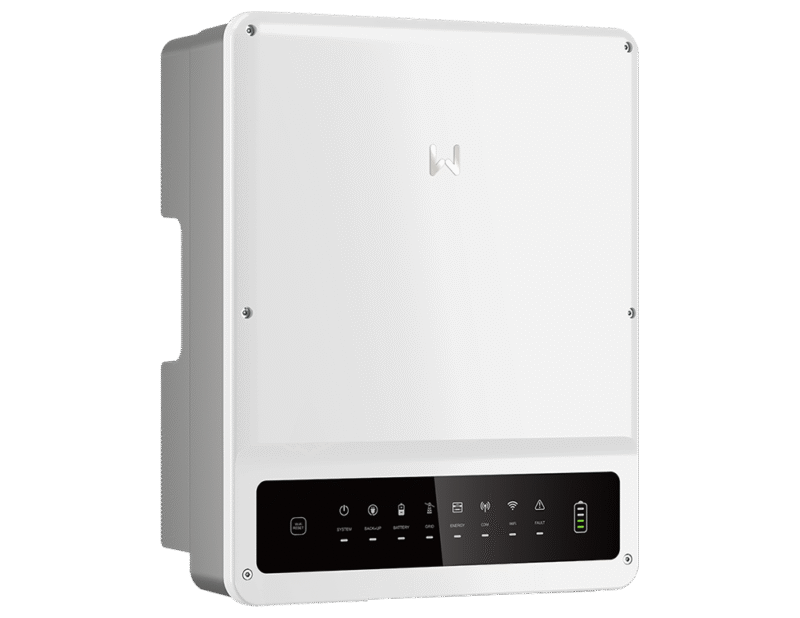

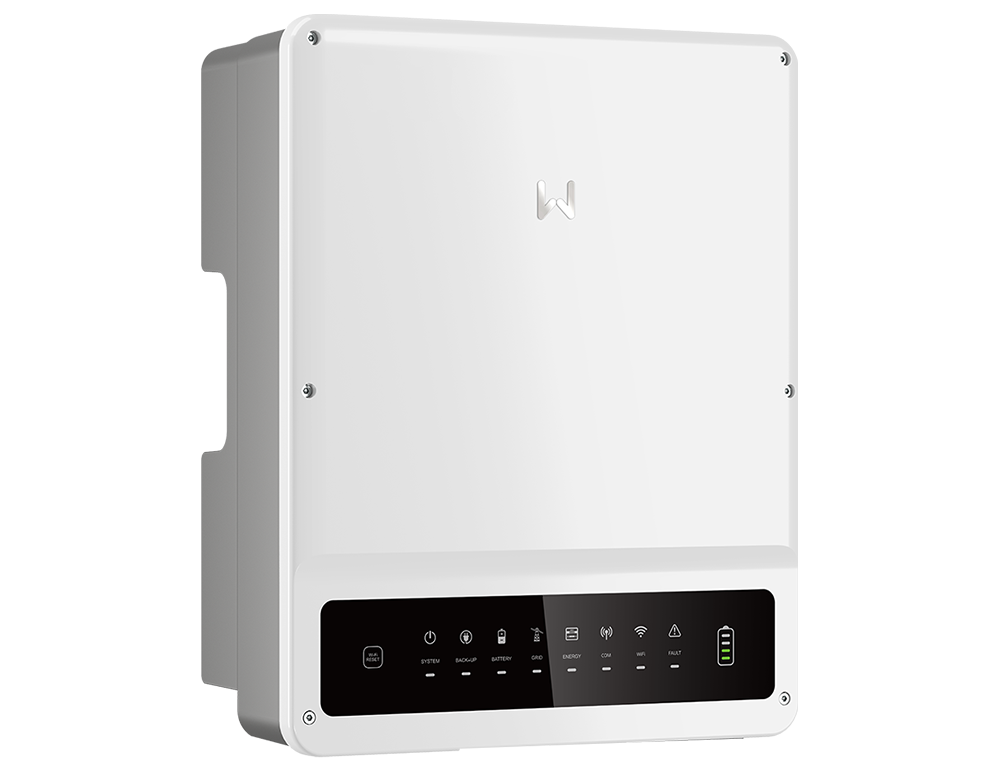

GoodWe GW10K ET Plus3 phase hybrid inverter from GoodWe enables greater energy independence and has a power range of 10kW. Because of its Uninterruptible Power Supply (UPS), the GoodWe GW10K ET Plus features an uninterruptible power supply for large inductive loads. The GoodWe GW10K ET Plus has a max DC power rating of 12000W and a max output current of 13.5A. Furthermore, it has a wide battery voltage range of 180~600V and a max battery efficiency of 98.0%.
This hybrid inverter contributes to a quiet working and living environment in the home because the design has no fan. In addition, this ensures longer device life. To ensure safety, this inverter has AC short-circuit and overvoltage protection and also reverse polarity protection. The GoodWe GW10K ET Plus is part of the ET Plus+ series and has a 5-year warranty. The GoodWe ET series is compatible with the following batteries: BYD hvs 5.1-12.8 kWh / BYD HVM 11-22.1 kWh / GW Lynx Home F. Both the energy meter and data cable for the battery and energy meter are included.
Features of the GoodWe GW10K ET Plus
- 3-phase
- 13.5A
- 10kW
- High Voltage battery connection
- 2 MPPT 2 IN
- SPD Type 2
- IP66
- RS485
- WIFI
- incl. Energy meters and CTs
- Dimensions 415 × 516 × 180mm
- Weight 24KG
