Growatt MOD 8000TL3-XH (AFCI)
€ 1.056,53 VAT 0%
Growatt 3PH Hybrid Inverter SPH6000TL3 BH-UP
€ 1.090,00 VAT 0%
€ 1.439,15 VAT 0%
3 phase, 10kW, 2 MPPT, IP65, Hybrid
10 in stock

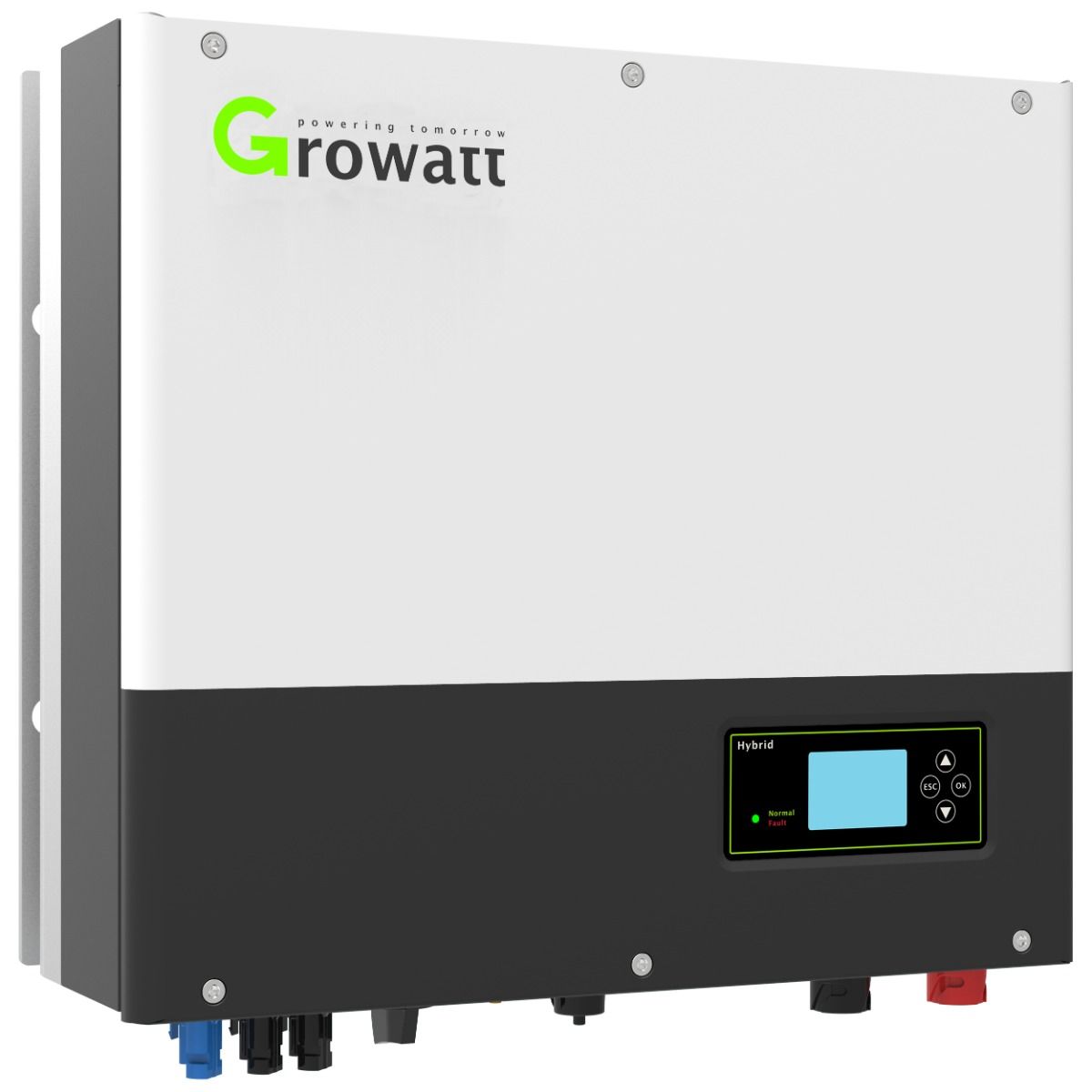

Growatt SPH 4000 ~ 10000TL3 BH-UP
100% three-phase unbalanced output
Smart phase-level power output limitation
Wide battery voltage 100-550V
UPS function, 10ms transition
Scalable system configuration
VPP interface ready
DC/AC Type II SPD
1.5 DC/AC ratio
| Item no. | GROWATT-SPH-10KTL3-BH-UP |
|---|---|
| Merk | Growatt |
| Manufacturer | Growatt |
| Warranty in years | 10 |
| Degree of protection (IP) | IP65 |
| Width (mm) | 505 |
| Height (mm) | 453 |
| Depth (mm) | 198 |
| Weight (kg) | 30 |
| Statistics code | 85044086 |
| Number of phases | 3 phases |
| Inverter type | String |
| Smart | Hybrid |
| Max. DC primary power (W) | 15000 |
| AC nom. output power (W) | 10000 |
| Number of MPPT | 2 |
| Suitable for outdoor installation | Yes |
| DC Switch | Yes |
| Arcing protection (AFCI) | No |
| Transformer | No |
| Display | Yes |
| Wi-Fi | Optional (not included) |
| Ethernet | Optional |
| Surge Protector | Type II DC & AC |
