Through Synergrid’s website, you can check if this inverter is allowed to be installed in Belgium.Max. DC voltage: 1100 VMax. AC apparent power: 110,000 VA10 MPPTs for versatile adaptation to different layouts20 strings intelligent monitoring and quick troubleshootingMax. efficiency 98.8%, EU efficiency 98.6% @480VacMax. efficiency 98.6%, EU efficiency 98.4% @400Vac
Show all
Huawei Inverter SUN2000-100KTL-M2
Solplanet ASW6K-LT-G2 Pro (Includes AI Dongle)
€ 741,97 VAT 0%
Huawei Inverter SUN2000-115KTL-M2
€ 4.268,70 VAT 0%

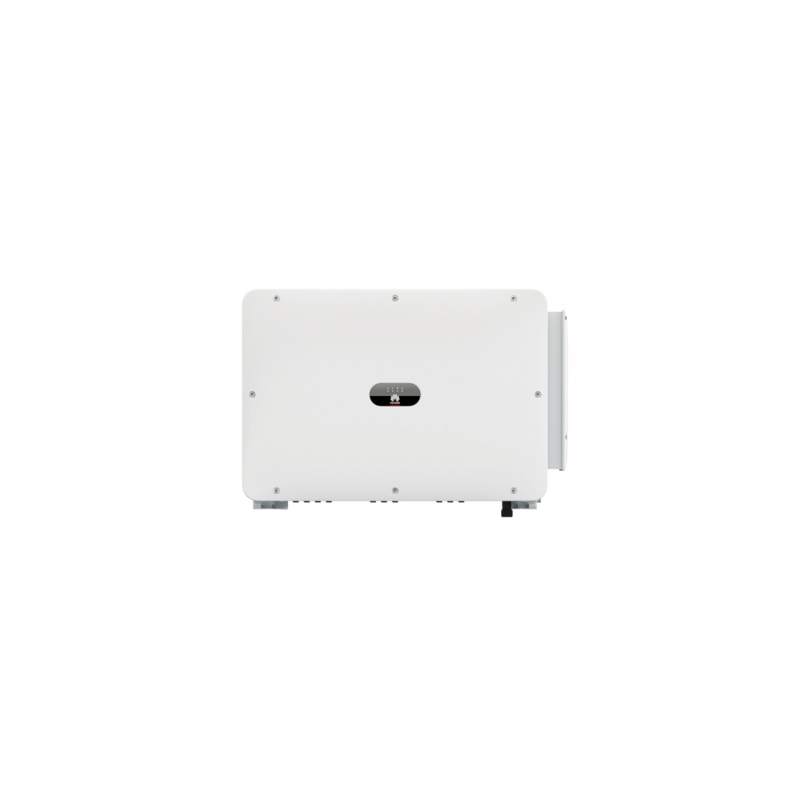

Huawei Inverter SUN2000-100KTL-M2
€ 3.935,20 VAT 0%
3 phase, 100kW, 10 MPPT, IP66, AFCI
4 in stock
Additional information
| Item no. | 01074695-020 |
|---|---|
| Merk | Huawei |
| Manufacturer | Huawei |
| Country of origin | China |
| Warranty in years | 5 |
| Statistics code | 85044086 |
| Weight (kg) | 93 |
| Height (mm) | 700 |
| Width (mm) | 1035 |
| Degree of protection (IP) | IP66 |
| Depth (mm) | 365 |
| Number of phases | Three Phase |
| Inverter type | String |
| AC nom. output power (W) | 100000 |
| Number of MPPT | 10 |
| MPPT operating range (Vdc) | 200V ~ 1,000V |
| Suitable for outdoor installation | Yes |
| Surge Protector | Type II DC & AC |
| Arcing protection (AFCI) | No |
| Display | No |
| Wi-Fi | Optional |
| DC Switch | Yes |
