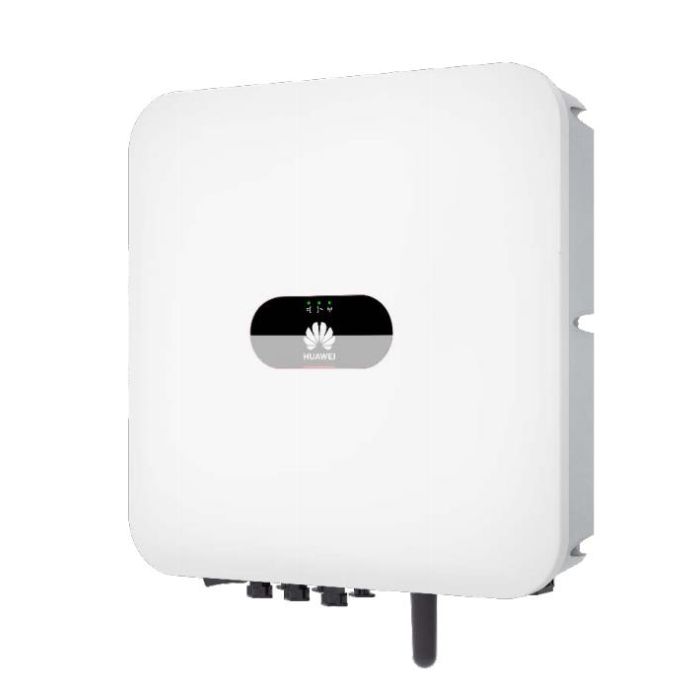

The Huawei SUN2000-5KTL-L1 is a single-phase, grid-connected hybrid inverter ideal for residential solar installations that combine both PV generation and battery storage.
Main Technical Specifications
Input (PV):
- Recommended max PV power: 7,500 Wp
- Max. input voltage: 600 V
- MPPT voltage range: 90-560 V
- Rated input voltage: 360 V
- Max. input current per MPPT: 12.5 A
- Number of MPPT trackers: 2
Output (Net-connected):
- Rated output power: 5,000 W (5 kW)
- Max. apparent power: 5,000-5,500 VA (depending on grid code)
- Rated voltage: 220 V / 230 V / 240 V
- Max output current: 25 A
- Power factor: adjustable from 0.8 forward to 0.8 backward
- THD (harmonic distortion): ≤ 3% at rated power
Efficiency:
- Max. efficiency: ~98.4%
- European weighted efficiency: ~97.8%
Battery Compatibility (ESS):
- Compatible with Huawei LUNA2000 (5-30 kWh) and LG Chem RESU 7H_R / 10H_R
- Operating voltage range: 350-560 V DC
- Max load capacity: up to 5,000 W
- Max. discharge power: up to 5,000 W
Safety & Protection:
- Arc detection (AFCI): according to UL 1699B-2018
- Comprehensive protection: anti-islanding, surge protection (Type II), insulation monitoring, over/under voltage, overcurrent, overheating, leakage current detection
Additional Features:
- Enclosure rating: IP65 (suitable for outdoor use)
- Communication: built-in Wi-Fi (FusionSolar App), optional Ethernet or 4G/3G/2G dongle
- Emergency power (backup): with Huawei SmartGuard or Backup Box during power outages
- Ease of installation: plug-and-play with app commissioning, multiple inverters linkable
Physical & Environmental:
Altitude: up to 4,000 m (derating above 2,000 m)
Dimensions: ~365 × 375 × 156 mm
Weight: ~12 kg
Operating temperature: -25 °C to +60 °C (derating above 45 °C)
