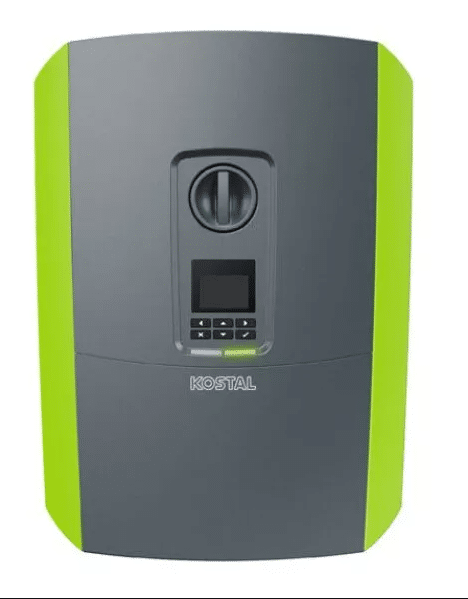

Kostal Plenticore plus 7.0 G2, for the extra plus in MPP or storage
The new Kostal Plenticore plus G2 inverters can best be described as universal. In addition to the 2 regular MPP trackers, another variable version is available. Here, as an alternative to a third roof orientation, a high-voltage battery storage system can be connected. This creates a highly efficient DC-coupled storage system. In addition to an attractive new design, a separate connection space for all necessary interfaces has also been created. Continuous measurement of own consumption, dynamic power control, intelligent shade management and the proven free Kostal Portal are all present. Local operation is also possible, thanks to the integrated Web server.
Compatible with the Dyness Tower T7 – T10 – T14 – T17
Product Benefits
- Easy connection of a high-voltage battery possible
- Modern and functional design
- Standard complete communication package
- Dynamic power control can be easily performed
- Intelligent shade management and self-learning battery control
- Temperature-controlled active cooling
- Can be used even without an Internet connection thanks to the integrated web server
Product Features Kostal Plenticore plus 7.0 G2
Warranty: 10 years (after registration with Kostal)
Mains connection: 3-phase
AC power: 7.0 kW
Trafo-free concept
2 +1 MPP trackers
DC circuit breaker integrated in front panel
Interfaces: Ethernet, USB, CAN, RS485, Modbus RTU, FRE
Switch contact for self-consumption control (e.g. heat pump)
Dimensions: 563 x 405 x 233 mm (H x W x D)
Weight: 17.86 kg
Safety class: IP 65
