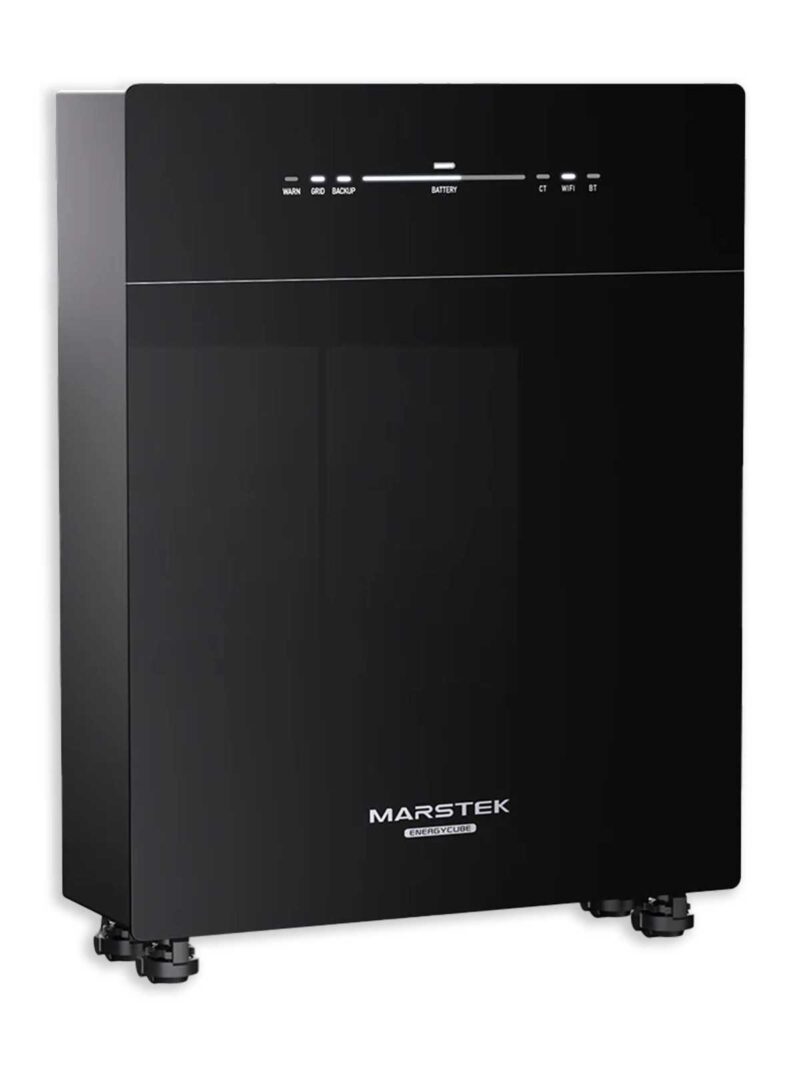

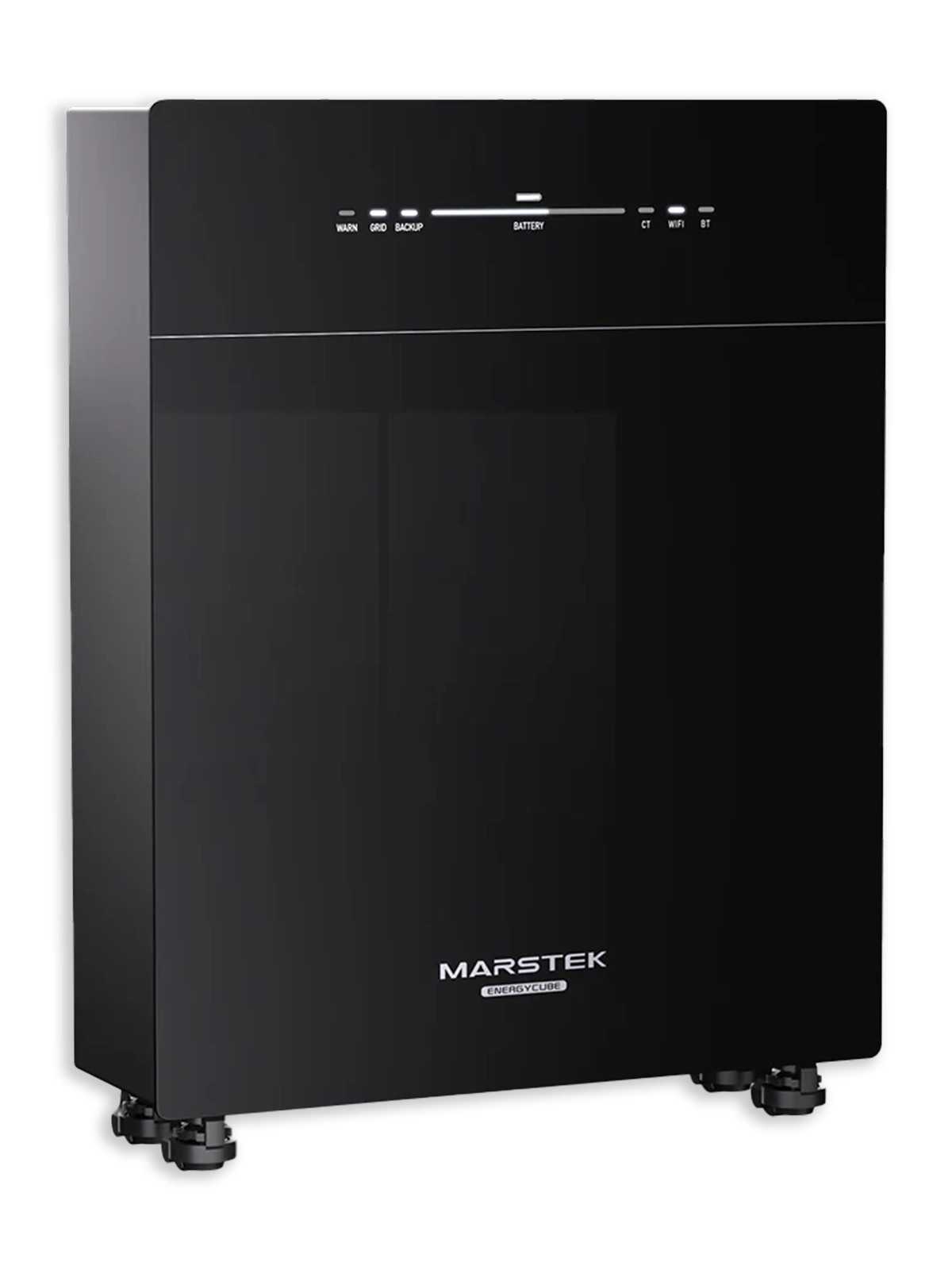

The Venus E is an AC-coupled home battery with a capacity of 5.12 kWh, designed to be easily plugged in through an ordinary power outlet, without complicated installation, and works with virtually any PV system
1. Plug-and-Play installation
No installer needed – just plug in, connect P1 or CT measurement and roll out via app
2. Anti-injection & self-consumption
Detects via smart meter when you return energy and stores excess; does not feed its own power back to the grid
3. Backup during power outages
Delivers up to 2.5 kW of off-grid power within milliseconds without interruption
4. Scalability
Expandable to up to 4 units per phase → maximum capacity of ~20.48 kWh
| Feature | Specification |
|---|---|
| Capacity | 5.12 kWh (LiFePO₄) |
| Consumption Cycle | 6000 cycles at 90% DoD (Depth Discharge) |
| Rated voltage | 51.2 V (16S) |
| AC output power | On-grid up to 2 500 W / backup 2 500 W (<10 ms switching) |
| Efficiency | More than 93.5% conversion battery → AC |
| Housing | IP65 – suitable for indoor & outdoor use |
| Dimensions | 520*224*640 mm, Weight 64.5KG |
| Connectivity | Wi-Fi, RS485, with smart meter (P1/CT) detection |
| Warranty | 10 years |
