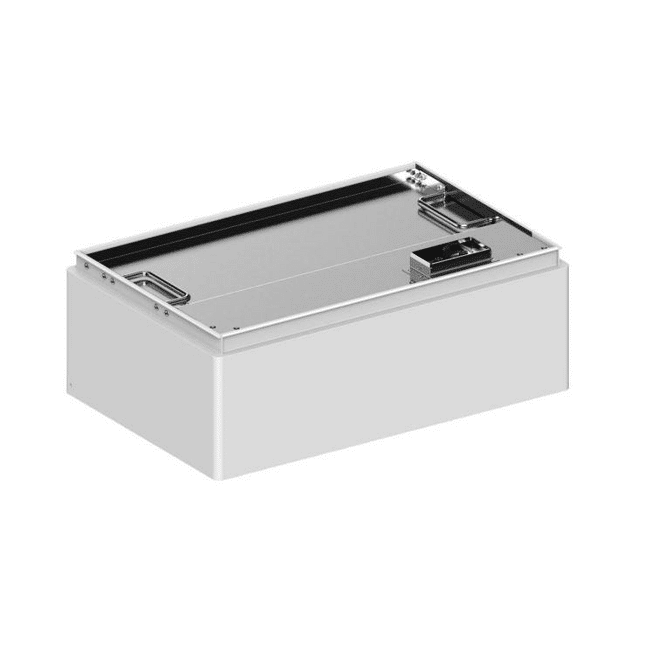

The Force H3 battery series from Pylontech is an excellent solution for residential storage applications. This high voltage battery is easy to connect, ideal for installers looking to save time. Thanks to its compact stackable system, the Force H3 is flexible, easy to install and offers up to 95% usable capacity, which can be scaled up to a maximum of 35.84kWh. Furthermore, the Force H3 has 8,000 cycle-life warranty and multi-protection of self-developed BMS. The system of the Force H3 is stackable and compatible with different brands of inverters. The number of modules required depends on the inverter. The Force H3 battery unit comes without BMS and has a 10-year manufacturer’s warranty.
Features of the Force H3 battery module
- Battery module FH10050
- Rated voltage 102.4Vdc
- Battery capacity 5.12kWh
- High Voltage
- RS485/CAN
- IP55
- Plug&Play
- 38.8kg
- Dimensions 540 x 350 x 170mm
