The products of the Pylontech Powercube series with their modular design concept offer maximum flexibility, both for rack mounting and container arrangement, and allow the customer to flexibly deploy the system. Configurable from units of 8-23 modules per system, the system can supply 256-736 V for high-voltage applications.
This package consists of

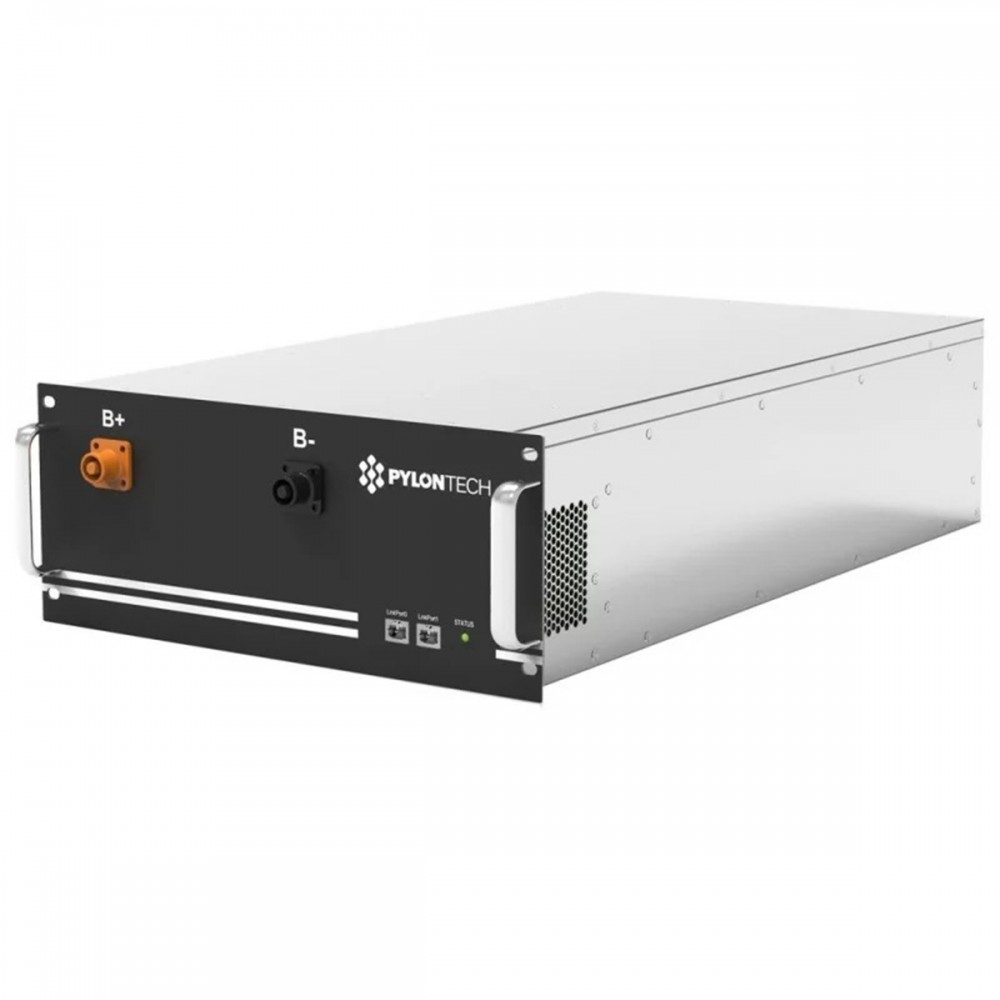

17 x Pylontech PowerCube M1C, 4.74kWh battery
1 x BMS for Powercube 1000V/180A + Cable sets

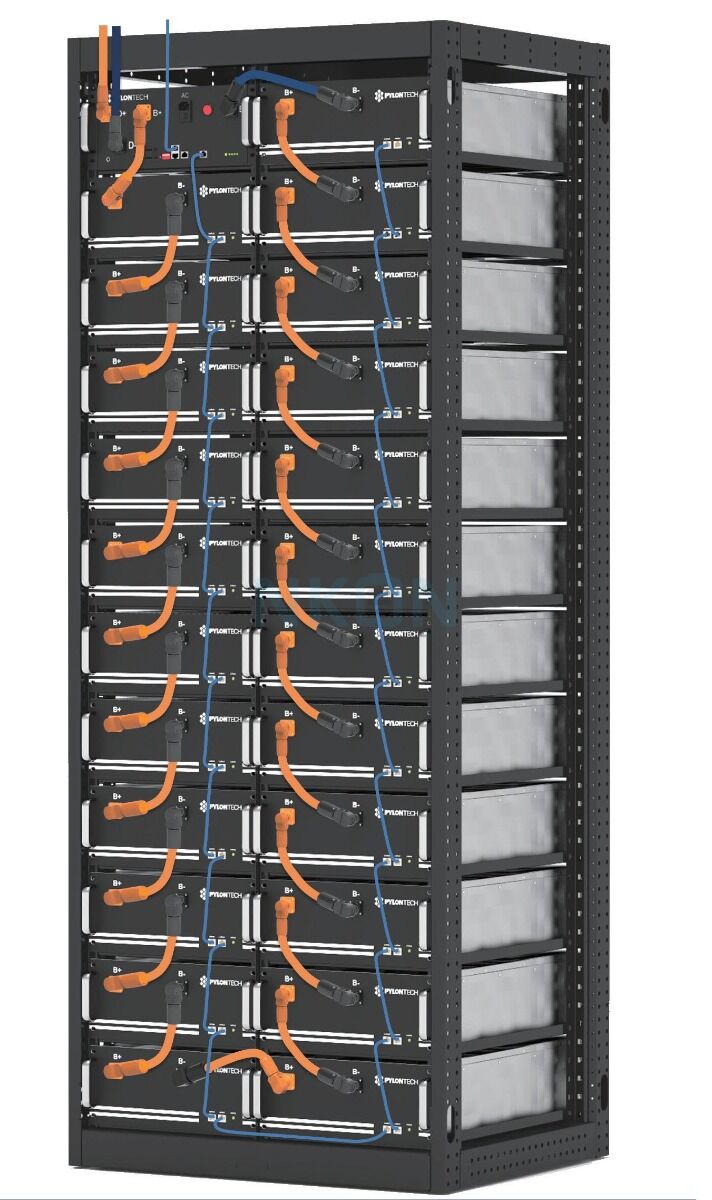

1 x PYLON-PC-RACK (space for 23 units and 1 BMS)
Product Features:
- Modular and scalable
- 6-23 modules per rack and up to 32 racks in parallel
- Flexible BMS voltage range from 200 VDC to 1000 VDC
- LiFePO₄ technology for safety and longevity
- High system reliability
- BMS with charge, current and temperature protection
- Flexible configuration options
- Rack-mounted or container-based systems
- Voltage range 32-736 V, upper voltage range 36-828 V
- Discharge depth 90%, efficiency 96%
- 1C classification, degree of protection IP20
- Communication via RS485 / CAN / Ethernet
- Operating temperature 10-40 °C
- 10-year warranty
