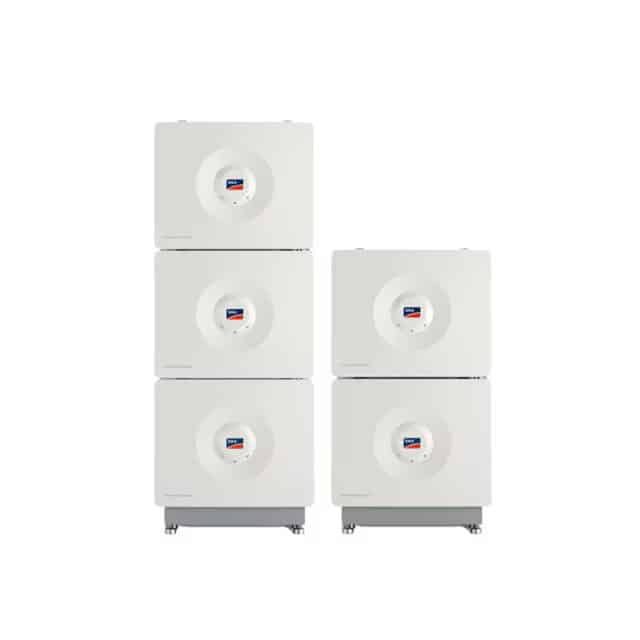

The SMA Home Storage 16.4 kWh Set for floor mounting is a high-performance battery storage solution for residential solar power systems. This set consists of five SMA Home Storage modules, each with a usable capacity of 3.28 kWh, resulting in a total usable capacity of 16.4 kWh. The modular design allows the storage capacity to be adapted to the specific needs of the household.
Includes 2x Floor mounting
🔋 Key specifications
- Usable capacity: 16.4 kWh (5 x 3.28 kWh modules)
- Rated voltage: 480 V
- Maximum charge/discharge current: 36 A
- Protection class: IP65 (suitable for outdoor installation)
- Cell technology: LiFePO₄ (Lithium-Iron-Phosphate)
- Lifespan: Up to 8,000 charge cycles
- Warranty: 10 years when registered within 30 days of installation
- Dimensions per module: 610 mm (W) × 483 mm (H) × 214.6 mm (D)
- Weight per module: 38 kg
- Overall dimensions (floor arrangement): 2 × (610 mm × 969 mm × 214.6 mm)
- Total weight: 190 kg
This battery is compatible with the following SMA inverters:
- Sunny Boy Smart Energy (SBSE xx-50): Supports 3.28 kWh to 13.12 kWh storage capacity.
- Sunny Tripower Smart Energy (STPx.0-3SE-40): Supports 6.56 kWh to 16.4 kWh storage capacity.
