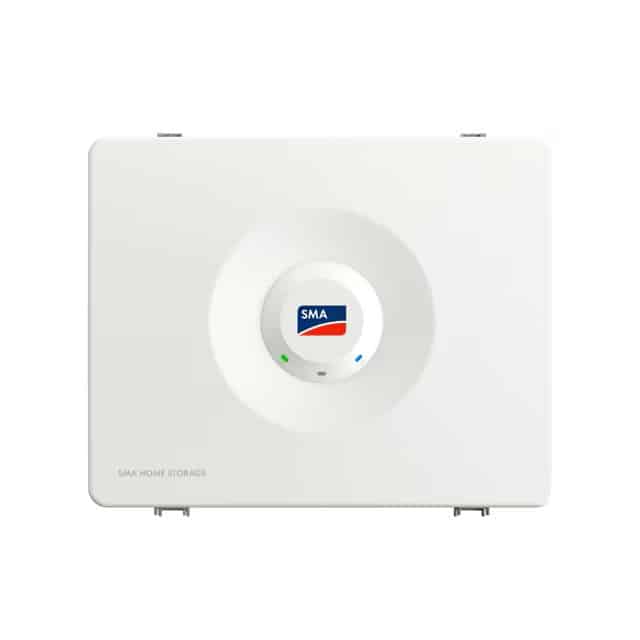

The SMA Home Storage 3.2 (model HS-BM-3.28-10) is a modular battery storage solution designed specifically for use with SMA hybrid inverters, such as the Sunny Boy Smart Energy.
This battery provides a reliable and flexible way to store solar energy and use it when needed.
🔋 Key specifications
- Capacity: 3.28 kWh per module
- Rated voltage: 96 V
- Operating voltage range: 90 V to 108 V
- Maximum charge/discharge current: 36 A
- Protection class: IP65 (suitable for outdoor installation)
- Cell technology: LiFePOâ‚„ (Lithium-Iron-Phosphate)
- Lifespan: Up to 8,000 charge cycles
- Warranty: 10 years when registered within 30 days of installation
- Dimensions: 610 mm (W) × 483 mm (H) × 214.6 mm (D)
- Weight: 38 kg
Sunny Boy Smart Energy (SBSE xx-50): Supports 3.28 kWh to 13.12 kWh storage capacity.
