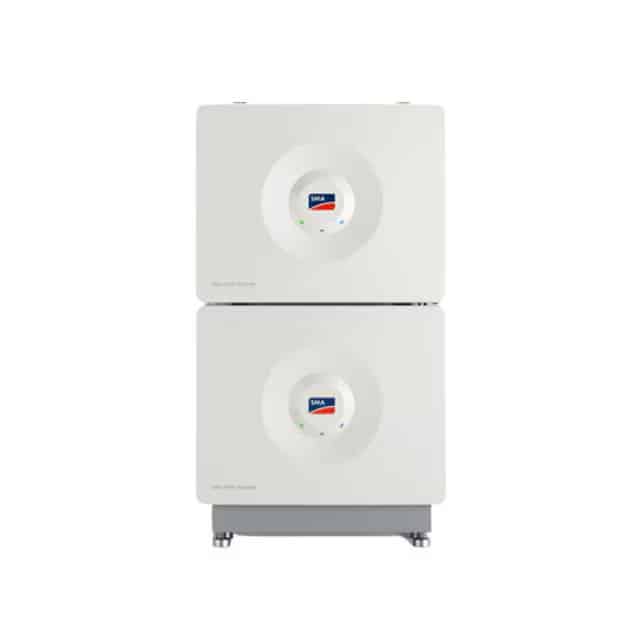

The SMA Home Storage 6.5 kWh Set for floor mounting is a powerful and flexible battery storage solution for residential solar power systems. This set consists of two SMA Home Storage modules (each with a usable capacity of 3.28 kWh), resulting in a total usable capacity of 6.56 kWh. Due to its modular design, the storage capacity can be expanded to a maximum of 16.4 kWh by adding additional modules.
including floor stand
Key specifications
- Usable capacity: 6.56 kWh (2 x 3.28 kWh modules)
- Rated voltage: 192 V
- Operating voltage range: 180 V to 216 V
- Maximum charge/discharge current: 36 A
- Protection class: IP65 (suitable for outdoor installation)
- Cell technology: LiFePO₄ (Lithium-Iron-Phosphate)
- Lifespan: Up to 8,000 charge cycles
- Warranty: 10 years when registered within 30 days of installation
- Dimensions per module: 610 mm (W) × 969 mm (H) × 214.6 mm (D)
- Weight per module: 76 kg
This battery is compatible with the following SMA inverters:
- Sunny Boy Smart Energy (SBSE xx-50): Supports 3.28 kWh to 13.12 kWh storage capacity.
- Sunny Tripower Smart Energy (STPx.0-3SE-40): Supports 6.56 kWh to 16.4 kWh storage capacity.
