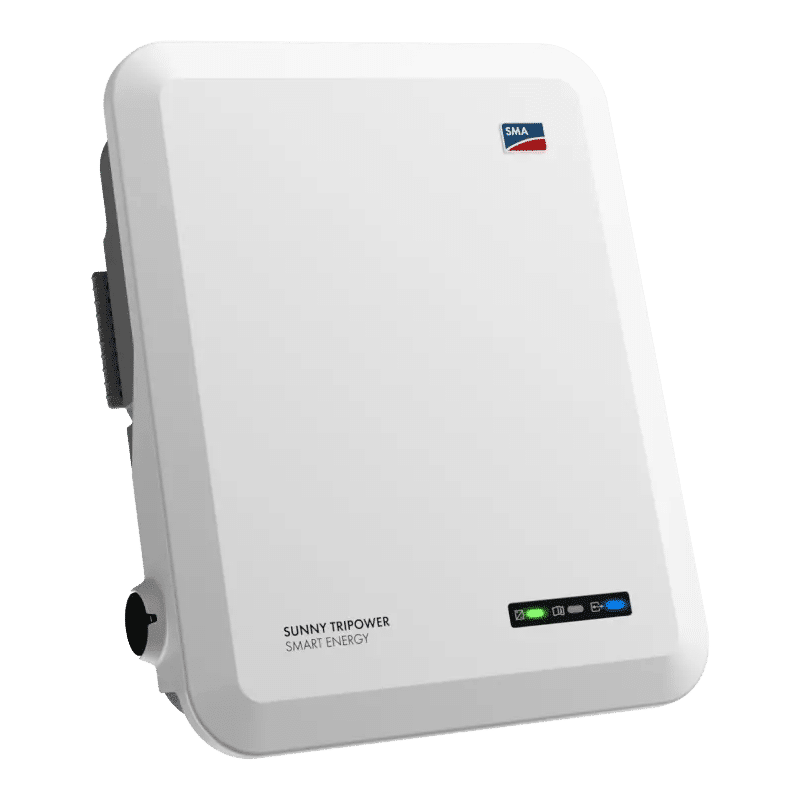

The SMA Sunny Tripower Smart Energy is a hybrid inverter intelligently connected to the SMA energy management system. With a Sunny Home Manager 2.0, heat pumps and e-charging stations can be integrated in addition to the battery. Charging based on real forecasts increases the efficiency of the entire system. Charging the battery during midday hours has never been easier.
Product Benefits
- Compatible with SMA Sunny Home Manager 2.0
- Integrated switchgear for emergency power
- Compatible with SMA Energy App, 360° app and Sunny Portal
- Also stores energy from other PV inverters or a cogeneration unit
- Integrated AC and DC surge protection type 2
Product features SMA hybrid STP 10.0 SE
- Mains connection: 3-phase
- Rated AC power: 10 kVA
- Maximum power in emergency operation: 12 kVA (maximum 10 s)
- MPP trackers: 2
- String connections per MPPT: 1/2
- Connection: WiFi, Ethernet, CAN
- Includes 3 m. battery cable with MC4 plugs
- Average noise emission: 30 dB (A)
- Safety Class: IP 65
- Dimensions: 598 x 500 x 173 mm (H x W x D)
- Weight: 30.0 kg
- Warranty: 5 years (free extension to 10 years through online registration in the SMA portal)
