SolarEdge Power Optimizer S1000-1GM4MBT
 58,29 VAT 0% Add to cart

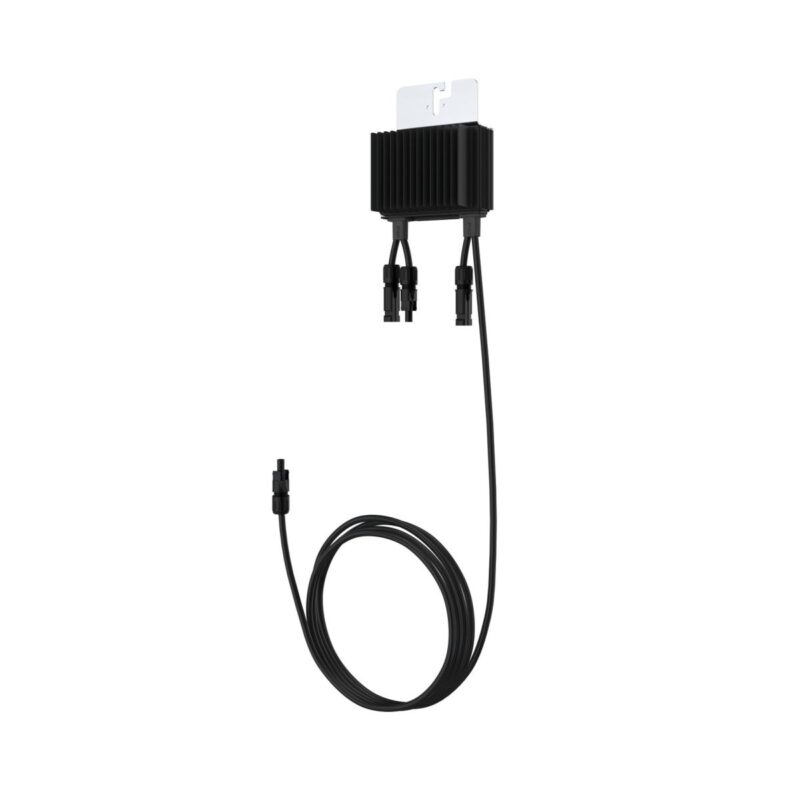

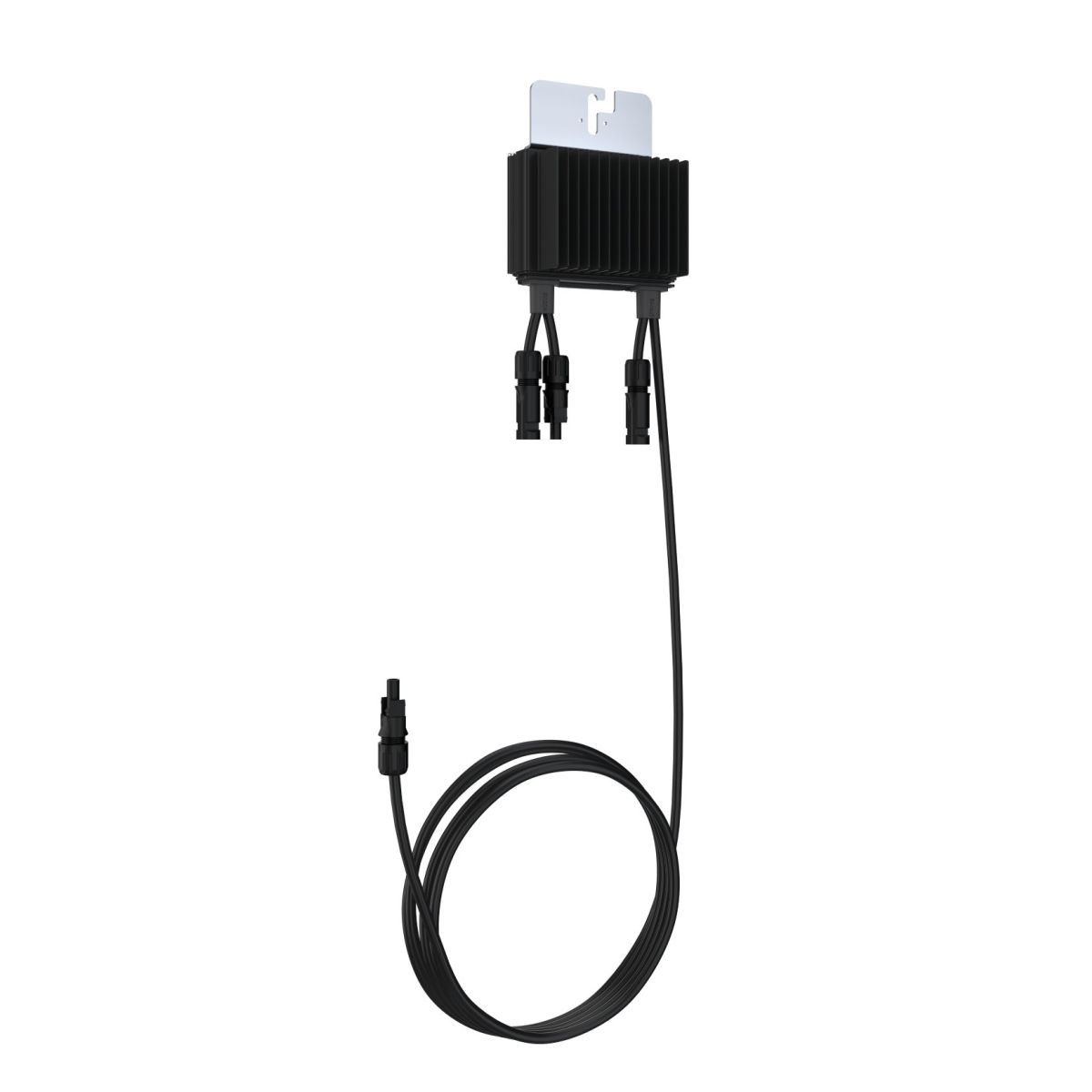

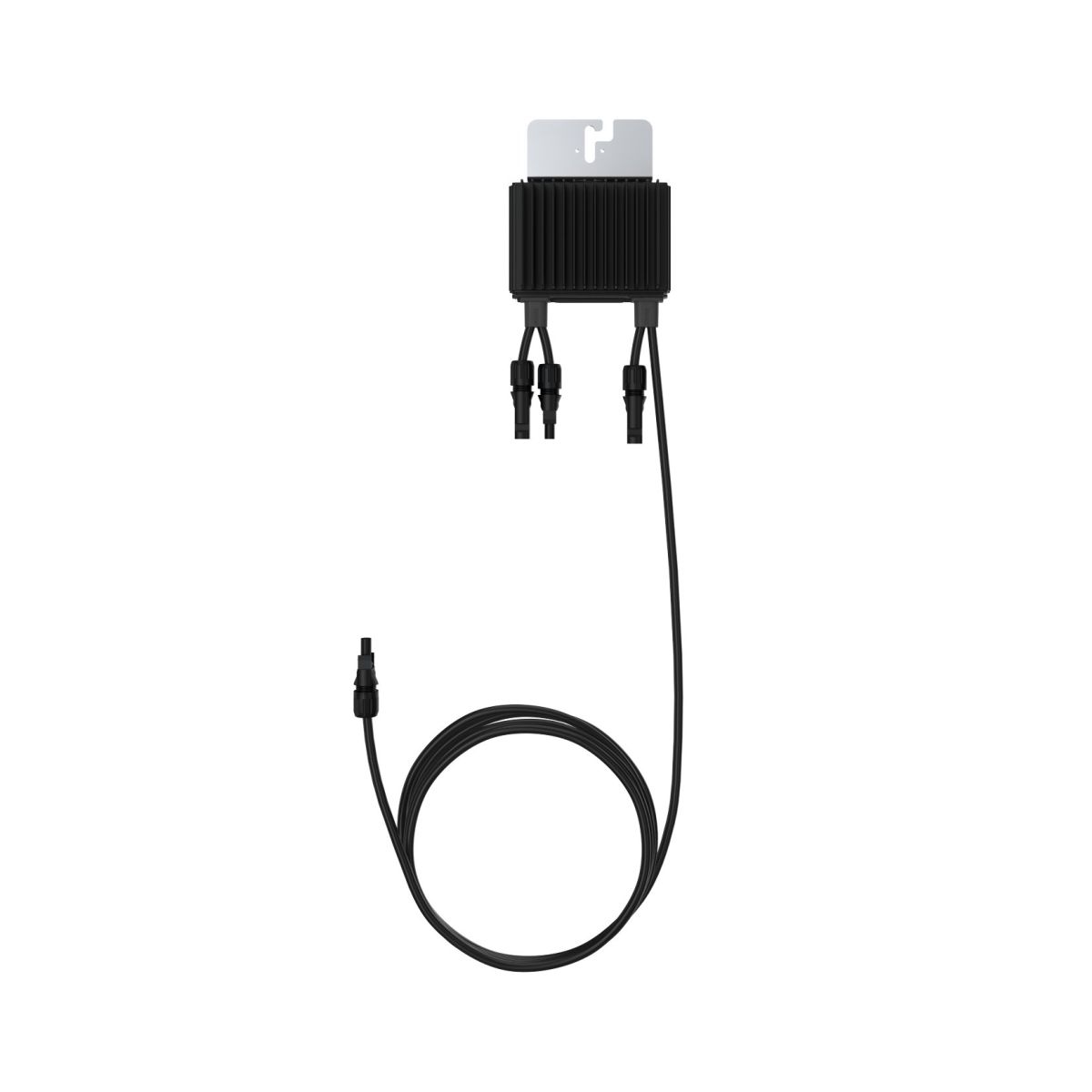

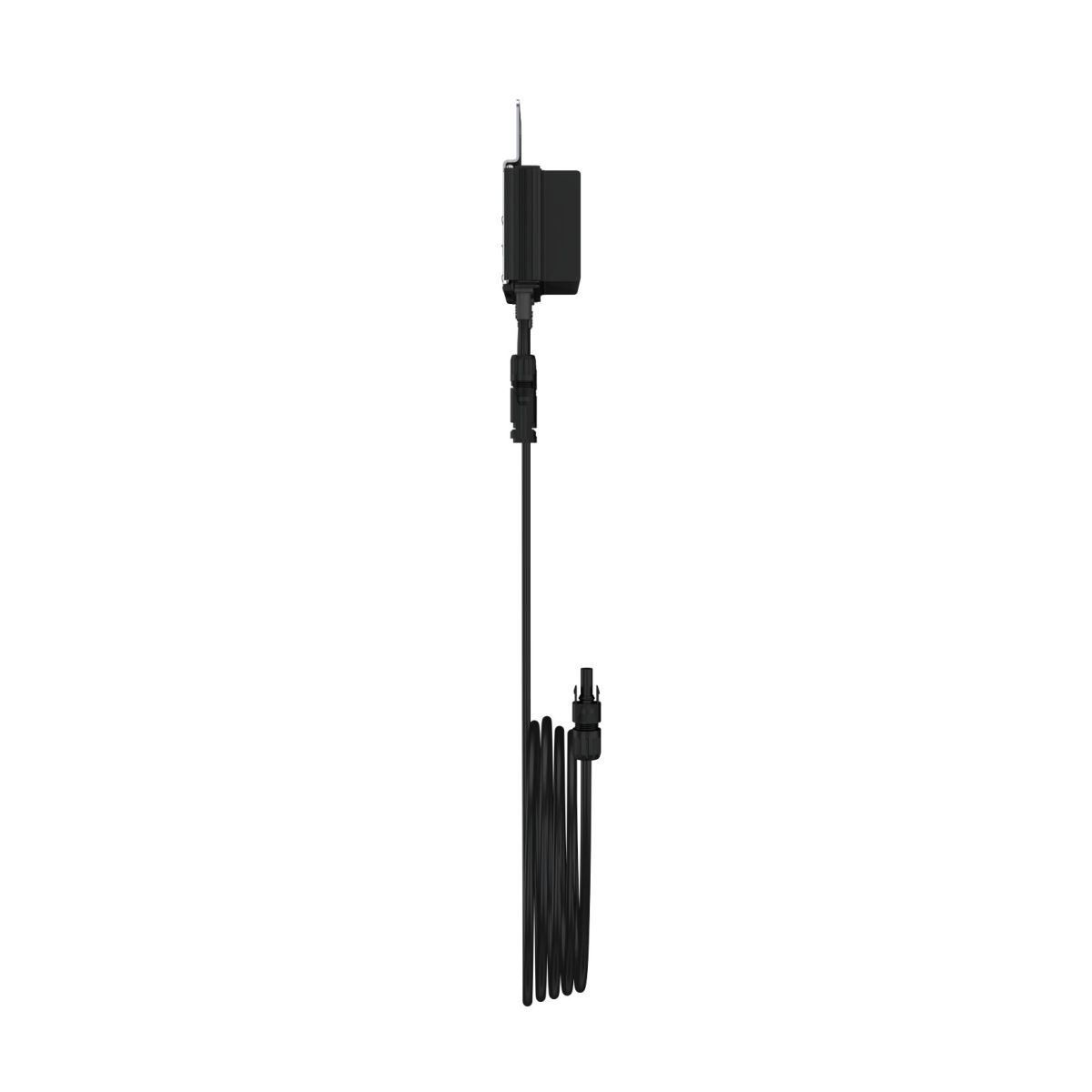

SolarEdge Power Optimizer S1000-1GM4MBT

 58,29 VAT 0%

1,000Wp input, 2 in series, length output cable 4.7m, length input cable 0.1m

1335 in stock

SolarEdge’s most advanced, cost-effective Power Optimizer for commercial and field installations
Higher energy yields Superior efficiency (99.5%) with panel-level MPPT for maximum system energy production and yield and fast ROI on the project
Supports high-power and bifacial PV panels, and high current per string for more power

Built-in advanced security

Designed to automatically reduce high DC voltage to touch-safe levels, upon grid/inverter shutdown, with SafeDCTM
Includes SolarEdge Sense Connect, allowing continuous connector monitoring to detect overheating due to installation issues or wear at the connector level

Lower BoS costs

Flexible system design allows maximum use of space and up to 2x longer string lengths, 50% fewer cables, fuses and combiner boxes
Quick installations with mounting by connecting two PV panels connected in series and easy cable management

Simpler O&M

System monitoring per 2 panels for accurate detection and time-saving remote troubleshooting

ESTG is a wholesaler of inverters for solar panels and other renewable electrical items, such as charging stations, home batteries and thermal heating. With a wide range of A-brands, ESTG supplies installers throughout Europe.

Additional information

Item no.

S1000-1GM4MBT

Merk

SolarEdge

Manufacturer

SolarEdge

Country of origin

Israel

Warranty in years

25

Statistics code

90328900

Length (mm)

155

Width (mm)

129

Height (mm)

52

Weight (kg)

1.05

Number of phases

1 stage, 3 phases

Degree of protection (IP)

IP68

Inverter type

Optimizer

Max. DC primary power (W)

1000

Number of MPPT

1

MPPT operating range (Vdc)

12.5 – 105

Suitable for outdoor installation

Yes

Suitable for panel

Bifacial/high power

Cable length

4700
