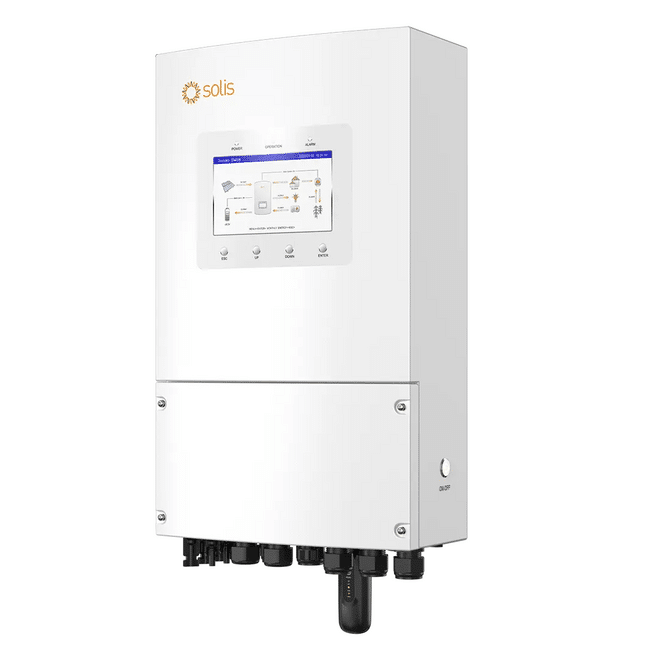

Solis Inverter S6-EH1P5K-L-PLUS
The Solis S6-EH1P5K-L-PLUS is a powerful and efficient single-phase hybrid inverter designed for residential energy storage applications. With a nominal AC output power of 5000 W and 2 independent MPP trackers, this inverter offers optimal performance even for solar panels with different orientations. The integrated WIFI and LAN communication makes the system easy to monitor and configure.
The rugged IP66 protection rating makes the Solis S6 suitable for outdoor installations in a variety of weather conditions. With a maximum efficiency of 96.2%, wide voltage compatibility and a built-in DC switch, this hybrid inverter delivers safe, efficient and sustainable operation. Thanks to its LV battery connection, it supports reliable energy storage and helps maximize self-consumption of solar energy.
Features | Solis-S6-EH1P5K-L-PLUS
- Max. DC primary power: 8000 W
- Number of MPPTs: 2
- Battery connection: LV
- Max. input voltage DC: 500 V
- Max. input current per MPPT: 16 A
- Protection rating: IP66
- Weight: 23 kg
- Dimensions: 560 × 355 × 253 mm
