Notice! This inverter is only for a Deltagrid power grid (3x230V). BELGIUM

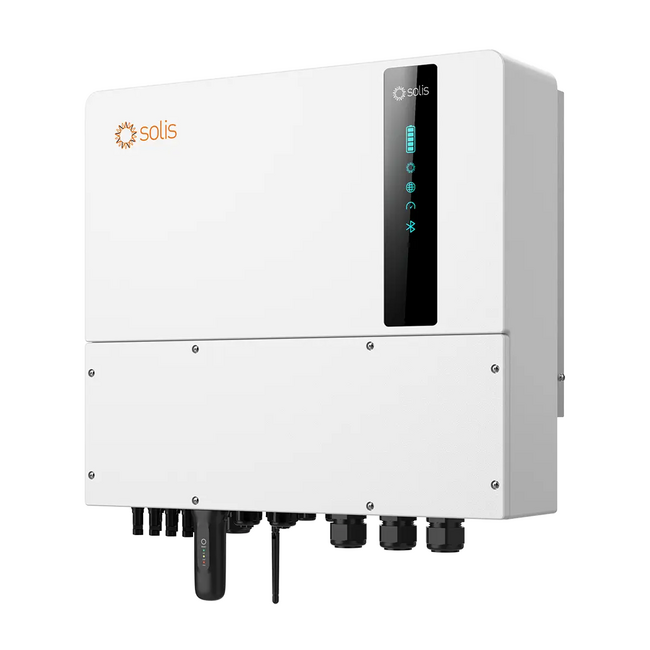

S6-EH3P10K-LVNDH hybrid inverter
The Solis S6-EH3P10K-LVNDH hybrid inverter is designed for residential and commercial installations with a maximum AC output power of 10 kW. With four independent MPP trackers and a wide voltage range of 200-850 V, this inverter guarantees optimal energy yield even with complex roof orientations. Thanks to integrated WIFI/LAN and grid monitoring, the installation is easy to manage and monitor.
This inverter combines high efficiency with robustness. Its IP66 protection rating makes it fully suitable for outdoor use, while advanced protection features, including AFCI (Arc Fault Circuit Interrupter), ensure maximum safety. With a Euro efficiency of 96.39% and a maximum efficiency of 96.7%, the Solis S6-EH3P10K-LVNDH delivers reliable performance throughout its lifetime.
Notice! This inverter is only for a Deltagrid power grid (3x230V).
ND in title stands for no display.
Features S6-EH3P10K-LVH
- AC nom. output power: 10 kW
- Max. DC primary power: 16,000 W
- Number of MPPT: 4
- MPP voltage range: 200-850 V
- Max. input voltage DC: 1000 V
- Max. short-circuit current per MPPT: 24 A
- Euro yield: 96.39%
- Max. efficiency: 96.7%
- Protection rating: IP66
- Weight: 32.6 kg
- Dimensions: 563 x 546 x 235 mm
- Mains monitoring: 3-phase
- Communications: WIFI/LAN
