Attention! This inverter is only for a Deltagrid power grid (3x230V).

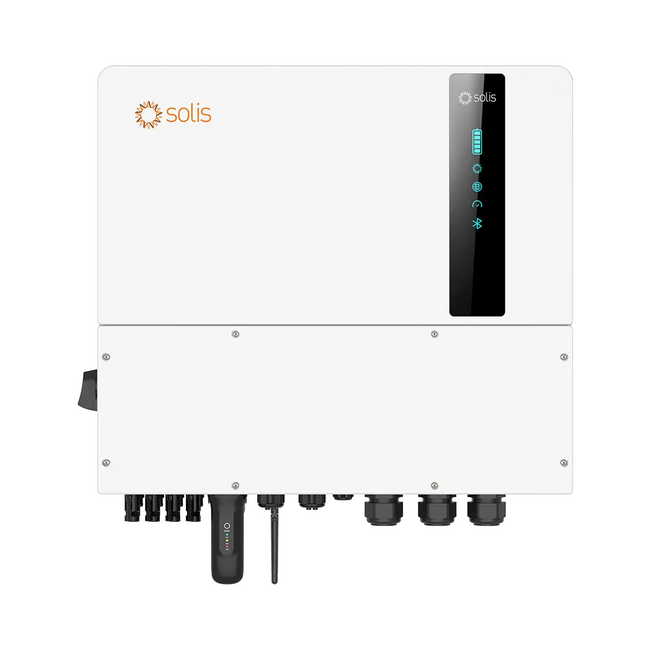

Designed for both residential and commercial applications, the Solis S6-EH3P10K-LV NDH hybrid inverter delivers a maximum AC output power of 10 kW. Thanks to the four independent MPP trackers and a wide input voltage range of 200 to 850 V, a high energy yield is guaranteed even in installations with multiple roof orientations or partial shade.
The inverter is distinguished by its high efficiency and durable design. With an IP66 rating, it has excellent resistance to outdoor conditions. Integrated WIFI and LAN connectivity, combined with comprehensive grid monitoring functions, makes monitoring and management simple and straightforward. In addition, advanced security features, such as AFCI arc detection, provide an increased level of security. With a European efficiency of 96.39% and a maximum efficiency of 96.7%, this Solis inverter guarantees reliable and stable long-term performance.
Features of the Solis-S6-EH3P10K-LVNDH
- AC nom. output power: 10 kW
- Max. DC primary power: 16,000 W
- Number of MPPT: 4
- MPP voltage range: 200-850 V
- Max. input voltage DC: 1000 V
- Max. short-circuit current per MPPT: 24 A
- Euro yield: 96.39%
- Max. efficiency: 96.7%
- Protection rating: IP66
- Weight: 32.6 kg
- Dimensions: 563 x 546 x 235 mm
- Mains monitoring: 3-phase
- Communications: WIFI/LAN
