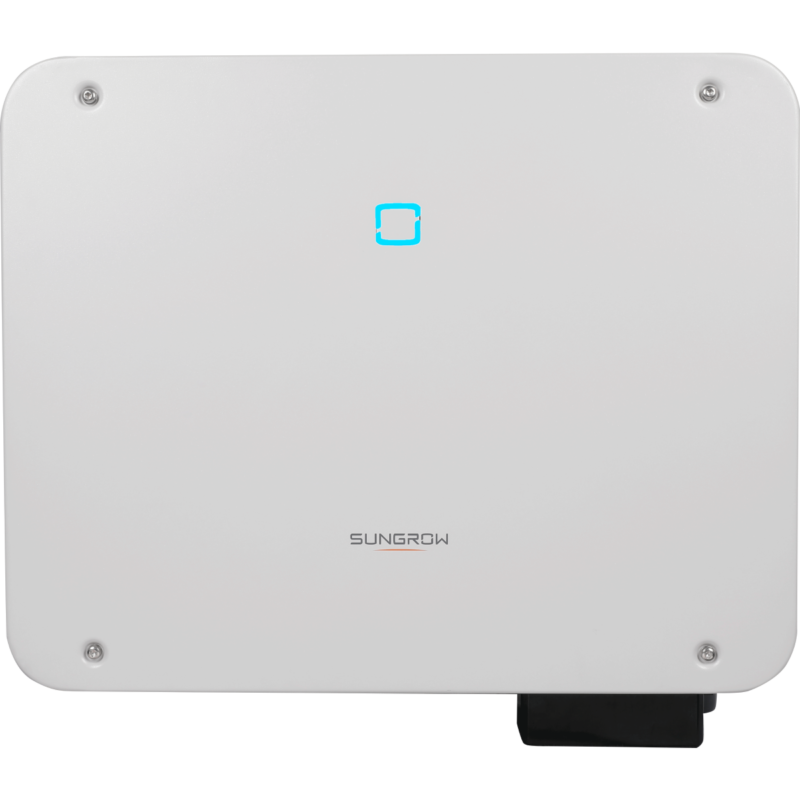

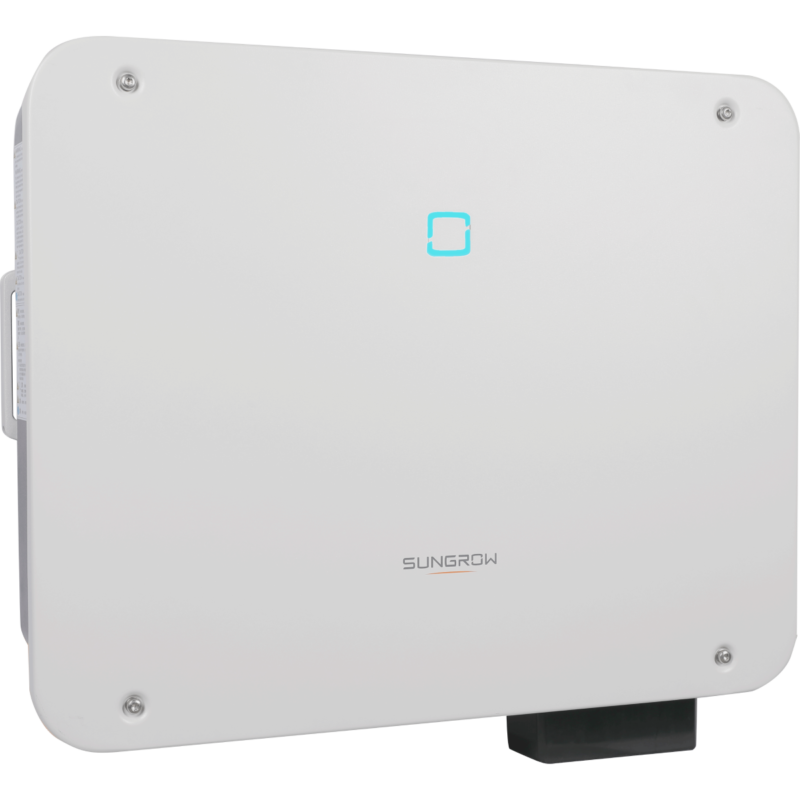

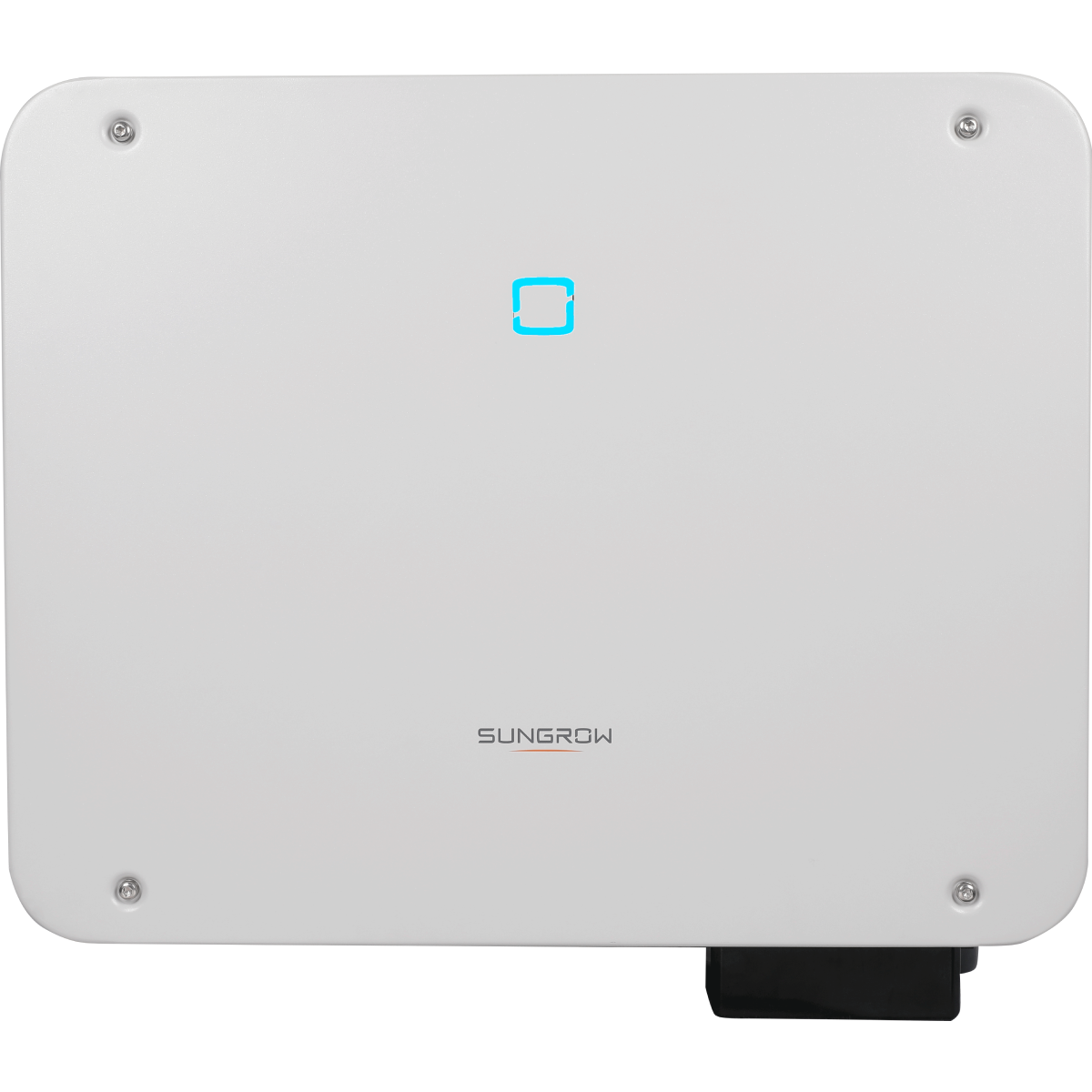

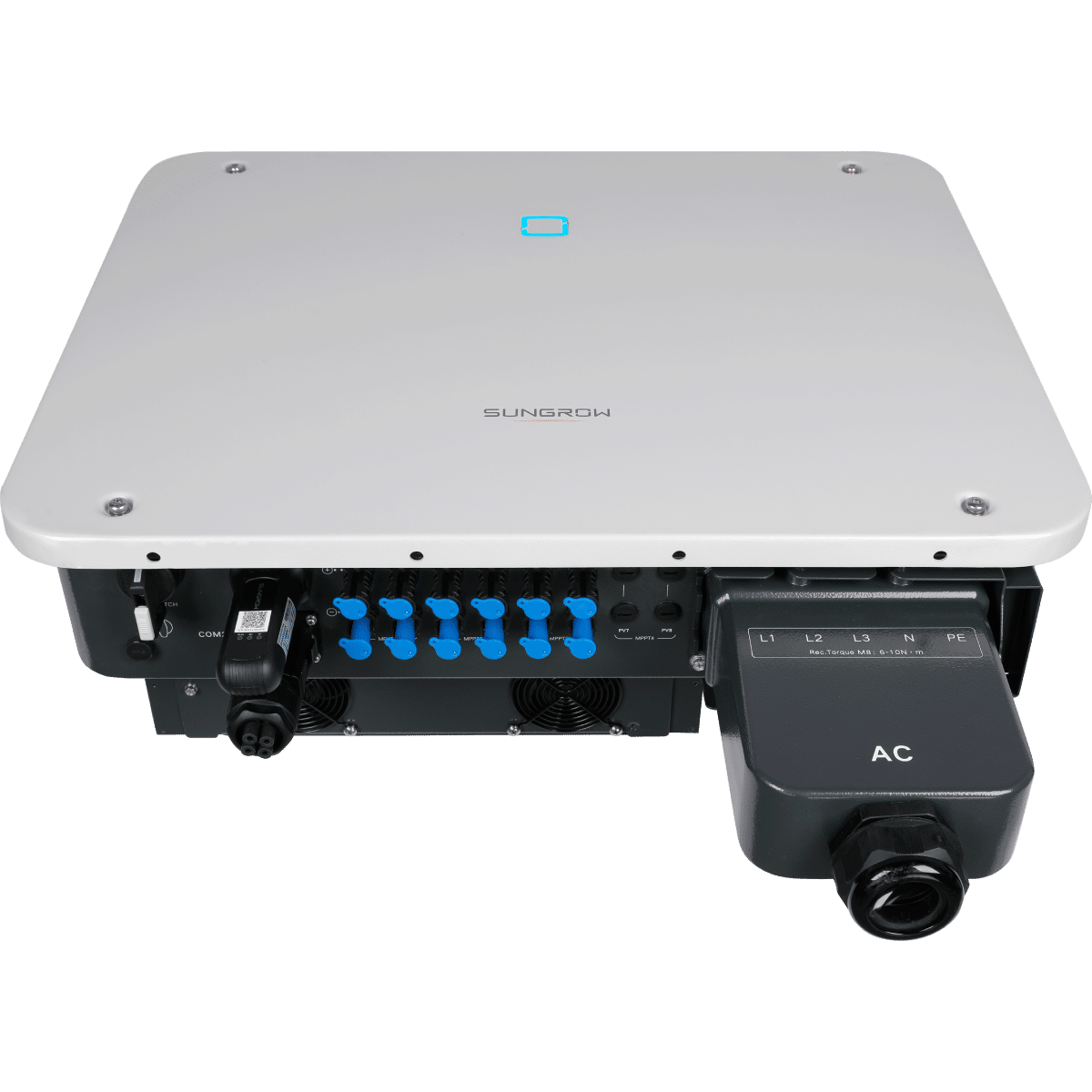

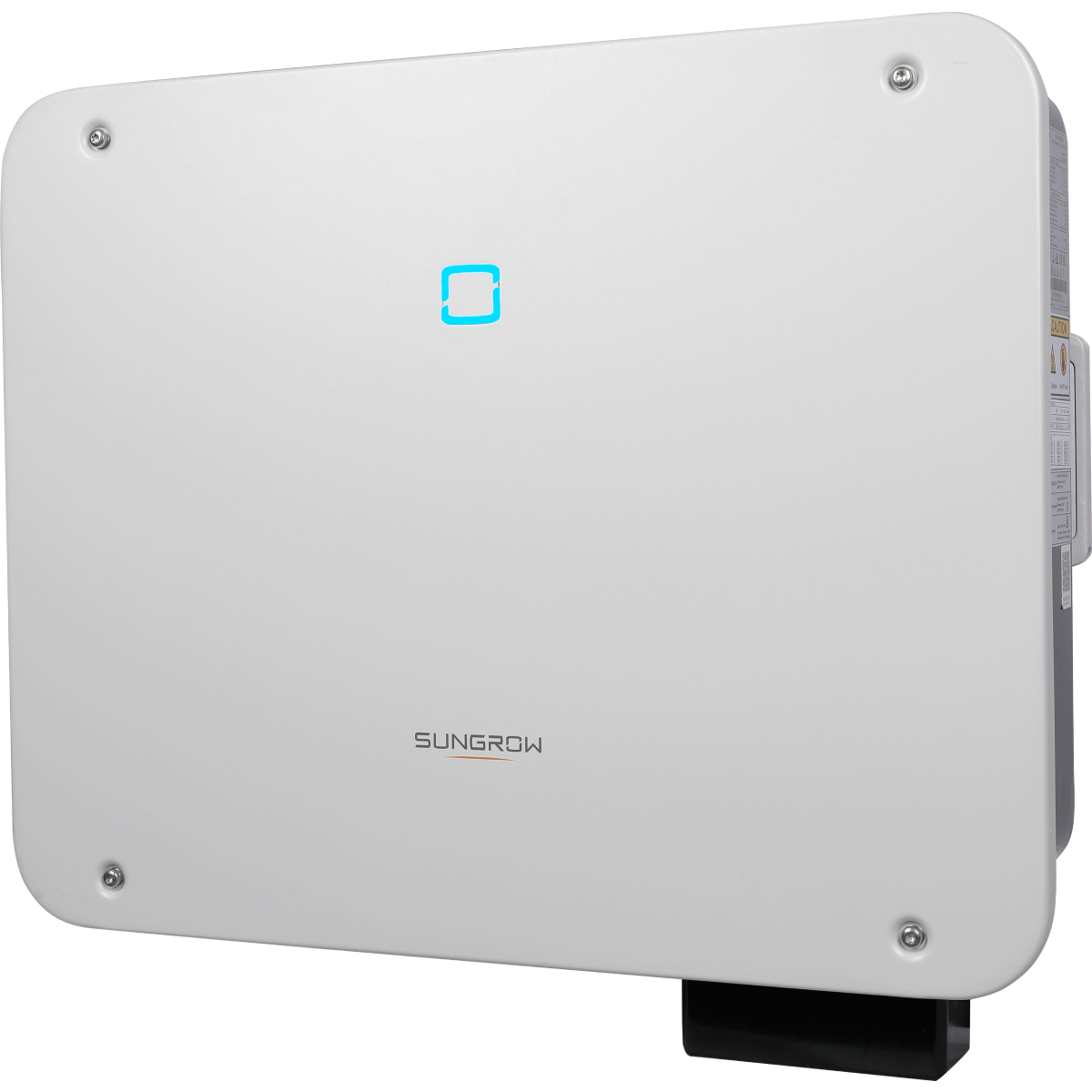

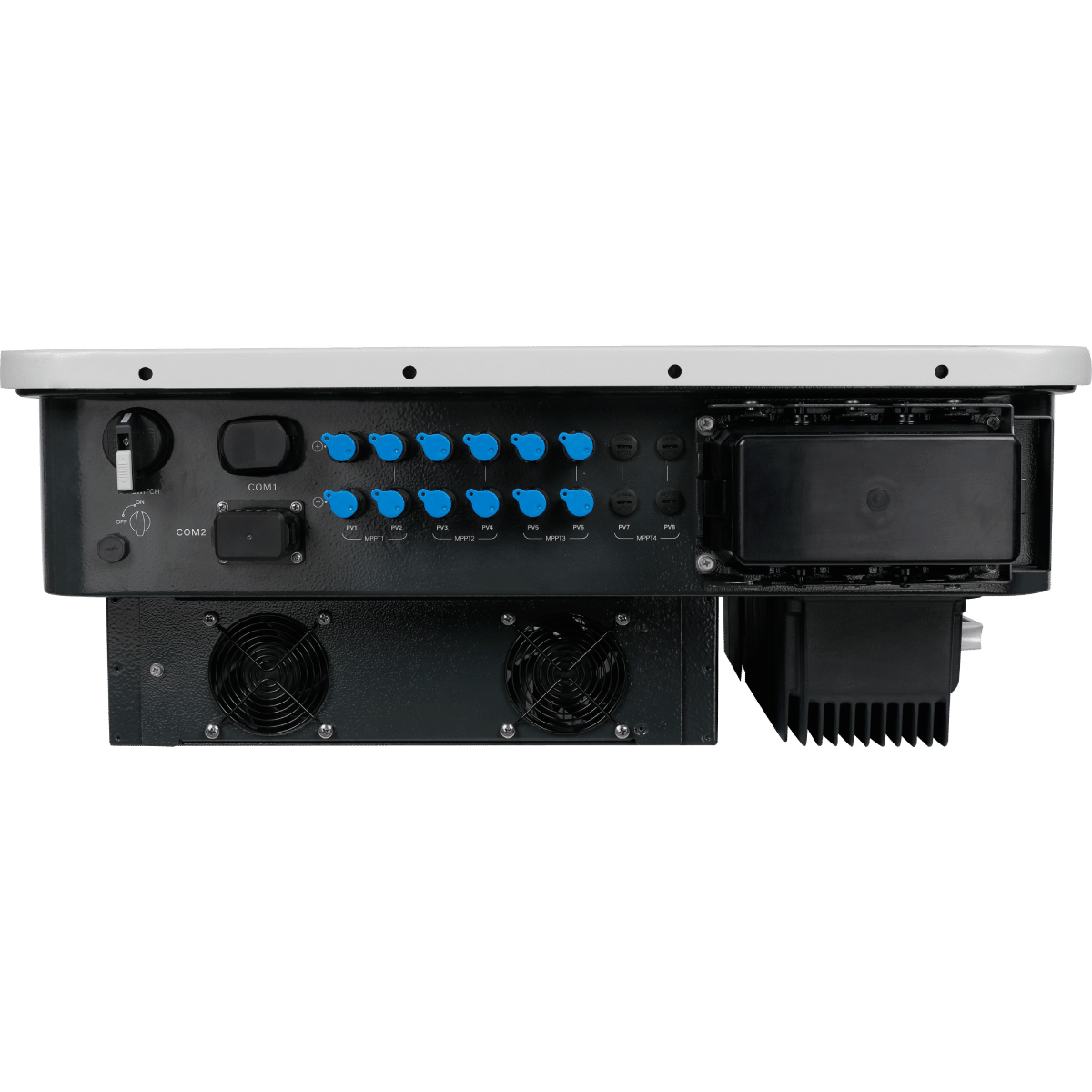

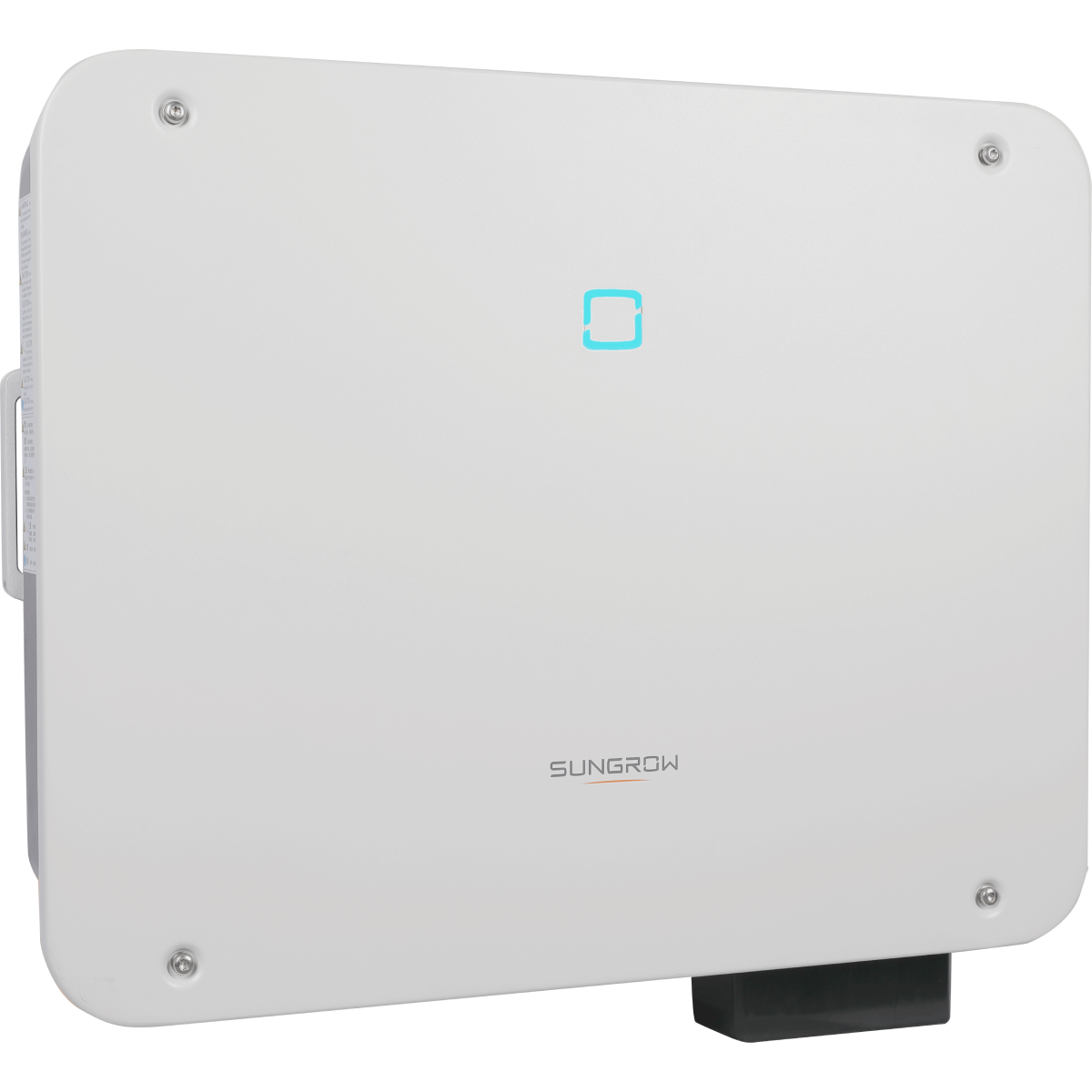

Sungrow 3PH Inverter 50kW (SG50CX-V12-P2)
 3.045,84 VAT 0% Add to cart

Sungrow 3PH Inverter 50kW (SG50CX-V12-P2)

 3.045,84 VAT 0%

3 phase, 50kW, 4 MPPT, IP66, supports AFCI 2.0 function.

6 in stock

HIGH EFFICIENCY

DC 15A current input, compatible with more than 500W+ PV module
Optimization mode for dynamic shading
Built-in PID recovery function

SMALLER INVESTMENT

Easy to handle thanks to 34% reduced weight
Ready to use with Buckle Design

INTELLIGENT R&M

Key component diagnosis and protection
Smart IV Curve Diagnosis
Grid fault recording function, useful for remote O&M

PROVEN SAFETY

IP66 protection and C5 Anti-corrosion
DC SPD Type I+II, AC SPD Type II
AFCI 2.0 support

Sunnergie is a wholesaler of inverters for solar panels and other sustainable electrical items, such as charging stations, home batteries and thermal heating. With a wide range of A-brands, Sunnergie supplies installers throughout Europe.

Additional information

Item no.

SG50CX-V12-P2

Merk

Sungrow

Manufacturer

Sungrow

Country of origin

China

Statistics code

85044086

Width (mm)

645

Height (mm)

575

Weight (kg)

41

Degree of protection (IP)

IP66

Depth (mm)

245

Number of phases

3 phases

Inverter type

String

Max. DC primary power (W)

70000

AC nom. output power (W)

50000

Number of MPPT

4

Suitable for outdoor installation

Yes

DC Switch

Yes

Arcing protection (AFCI)

Yes

Transformer

No

Wi-Fi

Optional

Ethernet

Optional

Surge Protector

Type I+II DC & Type II AC

MPPT operating range (Vdc)

160 – 1000 V
