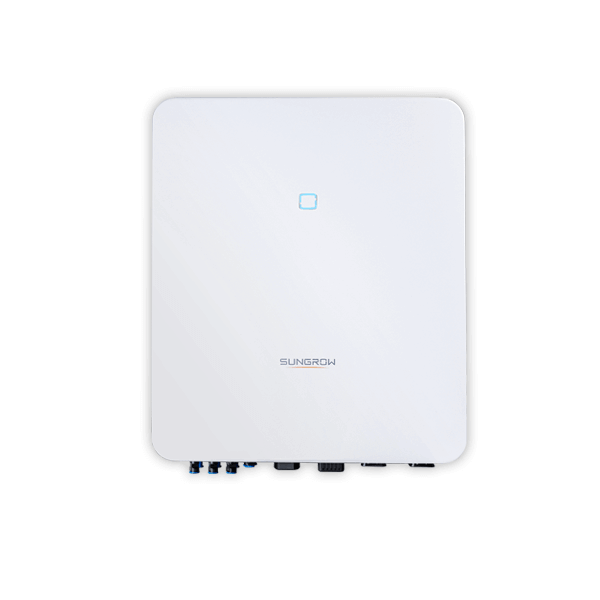

Sungrow Hybrid High Voltage Inverter with Emergency Output SH10RT-20
Deze nieuwe driefasige hybride omvormers beschikken over een driefasige noodstroomuitgang met draaistroom (schieflastbestendig). Combined with the high-voltage battery connection and 2 independent MPP trackers, the Sungrow inverter leaves no wishes unfulfilled. The device is configured up-to-date via the iSolarCloud Assistant and sends its data via the integrated WiFi or Ethernet interfaces to the free iSolarCloud portal or the iSolarCloud app. For interfacing with third-party data loggers, RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available. A 3-phase smart meter is included as standard.
External connectors, a spacious connection area and an integrated level ensure quick installation.
When PV modules are used with currents above 13.5 A, on a few peak days per year, the inverter may back out slightly!
Product Benefits
- Input voltage range of 200-950 V
- High efficiency up to 98.4%
- Natural convection
- Integrated AC + DC surge protection type 2
- External connections, no opening of the inverter required
- Integrated spirit level
- SG-Ready contact present (e.g. for heat pump control)
- Noise level 30 dB(A)
Applications
- Use without battery as a pure inverter
- DC operation with PV and battery
- AC operation without PV and with battery
Product Features
- Mains connection: 3-phase
- AC power: 10.0 kVA (10.0 kW nom. / 12 kW emergency power for 5 min via separate output)
- Polishing protection
- MPP trackers: 2
- MPPT 1: 1 MC4 input; MPPT 2: 2 MC4 inputs
- Battery connector
- Interfaces: Ethernet
- Cable cross section AC connection: 6-10 mm²
- Cable cross section DC connection: 4-6 mm²
- Dimensions: 540 × 460 × 170 mm (H × W × D)
- Weight: 27 kg
- Protection Class: IP65
Scope of delivery
- Inverter
- 3-phase smart meter Chint DTSU666-20 included
- WiNet-S module WiFi adapter
- Wall Bracket
- Spread plug set
- M4 screws and washers
- AC/Backup plug connector kit
- Vein sleeves
- PV plug
- Crimp contact
- SUNCLIX plug connector set
- LAN plug
- COM connector
- RS485 cable
- OT connection
- Documentation
