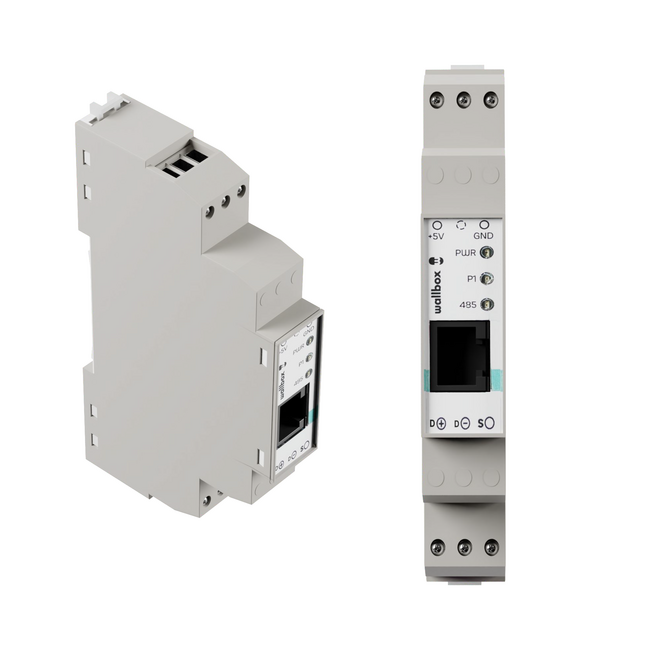

Wallbox P1 Port
The P1 Port from Wallbox makes all the smart functionalities of your Wallbox charging station available. This meter is very easy to install thanks to its direct connection to the smart meter in a DIN rail. This eliminates the need to cut power cables. Moreover, the P1 Port is very flexible and compatible with the Wallbox Pulsar Plus, Pulsar Max, Commander 2/2s and Copper SB. In addition, it works with both 1- and 3-phases and can be used with Power Boost, Eco-Smart and Dynamic Power Sharing. The interface of the WALL-MTR-P1PORT works with RJ12 – 6 pin connector.
Features of the Wallbox P1 Port
- 1-phase & 3-phase
- Screw terminal connector for 0V and +5V DC
- Max current consumption 50mA
- Max cable length 3 meters
- Dimensions 90 x 18 x 65mm
- Direct access to smart meter
