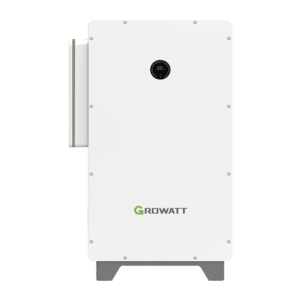

Growatt WHITE 50K-XHU (AF, PID) Battery Inverter
The Growatt WIT 50K-XHU is an advanced three-phase hybrid inverter designed specifically for large-scale commercial and industrial applications. This system seamlessly integrates with battery storage and optimizes its own consumption of generated solar energy, resulting in efficient and sustainable energy management.
Compatible Batteries
The Growatt WHITE 50K-XHU inverter is compatible with the Dynes Stack100 and Growatt AXE HV battery series, such as the AXE 5.0H-E1 EU module combined with the Growatt AXE 1000100-C1 BMS. These modular battery systems can be built in various configurations to achieve the desired storage capacity, ranging from 30 kWh to 180 kWh.
Key Features
- Multiple MPPTs and battery inputs: For maximum flexibility and efficiency when connecting a variety of PV strings and battery configurations.
- Support for DG input: Enables integration with a diesel generator, for additional energy security during grid failures.
- Smart load function: Optimizes energy distribution within the system, leading to more efficient energy consumption and potential cost savings.
- Intelligent air cooling: Guarantees optimal performance without power loss even at high ambient temperatures up to 50°C.
- Integrated AFCI feature: Provides active detection and interruption of arcs for increased safety.
- Built-in PID recovery function: Prevents and recovers power loss due to Potential Induced Degradation (PID) in PV modules.
- High efficiency: Achieves up to 98.4% for optimal energy yield.
- Wide input voltage range: Flexibly applicable with a variety of PV panel configurations.
Main Advantages
- High energy efficiency: With a maximum efficiency of up to 98%, optimum energy yield is achieved from solar power systems.
- Excellent scalability: Systems can operate in parallel in off-grid mode and are scalable up to 300 kW, providing flexibility for future expansion.
- Reliable backup functionality: Equipped with a UPS function and “black start” capabilities, ensuring continuous power supply in case of mains interruptions.
- Flexible energy export and consumption: Provides 100% three-phase unbalanced output and 150% off-grid overload capacity, suitable for a variety of commercial needs.
- Robust protection: Equipped with IP66 protection rating, Type II SPD on both DC and AC sides, and active ARC protection (AFCI) for maximum operational safety.
- Comprehensive monitoring: Compatible with Growatt monitoring platforms via WiFi, Ethernet and RS485, for detailed insight and management of system performance.
