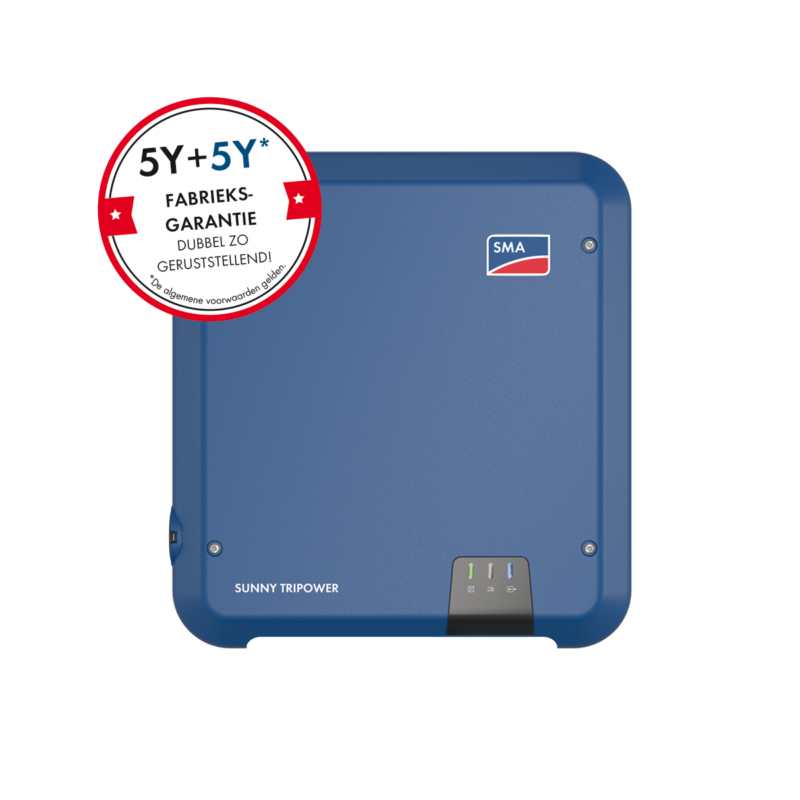

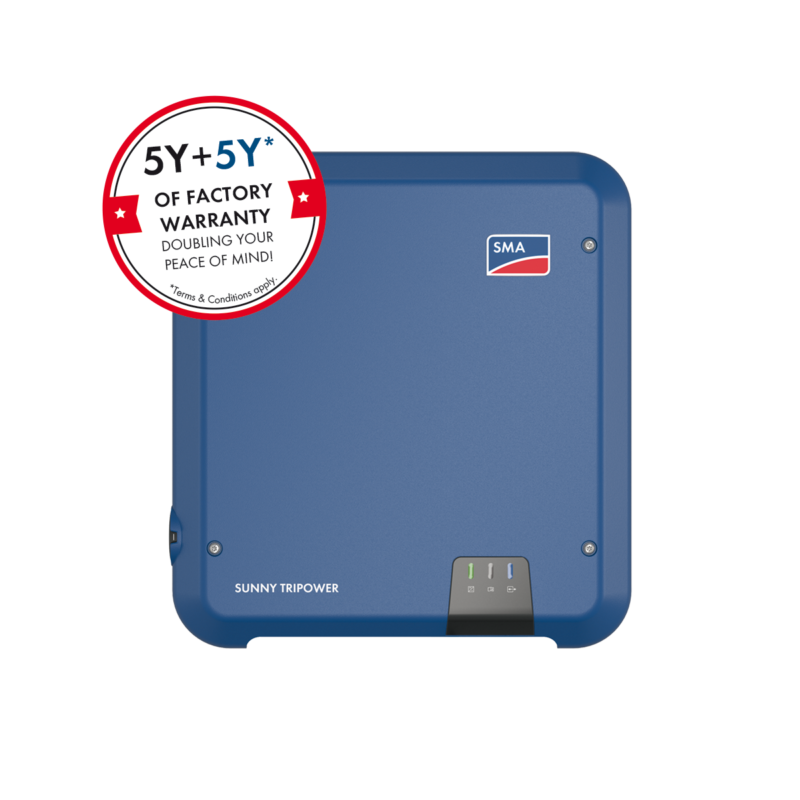

Inverters commissioned in homes in Belgium, Luxembourg and the Netherlands from April 1, 2021 enjoy a full 5+5-year warranty. Click here for more information. The Sunny Tripower 8.0 is easy to install due to its light weight. Also present is OptiTrac Global Peak, now known as Shadefix. SMA Smart Connected is also standard as a free service from SMA. The inverter is also easy to expand with TS4-R optimizers due to the integrated TS4-R communication. Easy & quick installation At only 20.5kg, this is a relatively lightweight inverter, with a compact design as well. This makes it easy for one person to install. There is no need to open the inverter, as all connections are located on the bottom of the unit. An Ethernet connection and Wi-Fi antenna are included. The user interface can thus be easily accessed by a smartphone, tablet or other suitable device. Shadefix Shadefix is a form of shade management that allows plants with light to medium cloud cover to still function optimally. The Sunny Tripower 8.0 ensures, thanks to Shadefix, that solar cells partially or completely covered by shade do not affect the performance of the entire module. Without Shadefix, such cells would limit power throughput, resulting in power loss for the entire panel. SMA Smart Connected Once the inverter is installed, SMA Smart Connected ensures that it will be monitored automatically. This free system will notify both the installer and the customer in the event of an anomaly. As a result, the parties directly involved know about the problem right away and the installer can then respond appropriately. Should a replacement unit be needed, SMA will deliver it within 1 to 3 days. Expansion TS4-R optimizers In environments with light shade, Shadefix can ensure that the solar panel works optimized. In other cases, such as when the installation is more complex or when there is more shade, expanding the Sunny Tripower 8.0 with TS4-R optimizers can provide a solution. These can be easily added because of the integrated TS4-R communication.
ESTG is a wholesaler of inverters for solar panels and other renewable electrical items, such as charging stations, home batteries and thermal heating. With a wide range of A-brands, ESTG supplies installers throughout Europe.

Additional information

Item no.

STP8.0-3AV-40

Merk

SMA

Manufacturer

SMA

Country of origin

Germany

Warranty in years

5

Statistics code

85044086

Width (mm)

460

Height (mm)

497

Weight (kg)

20.5

Number of phases

3 phases

Depth (mm)

176

Degree of protection (IP)

IP65

Inverter type

String

Max. DC primary power (W)

15000

AC nom. output power (W)

8000

Number of MPPT

2

Suitable for outdoor installation

Yes

DC Switch

No

Arcing protection (AFCI)

No

Wi-Fi

No

Ethernet

Yes

Transformer

No

Display

No

Datalogger

No
