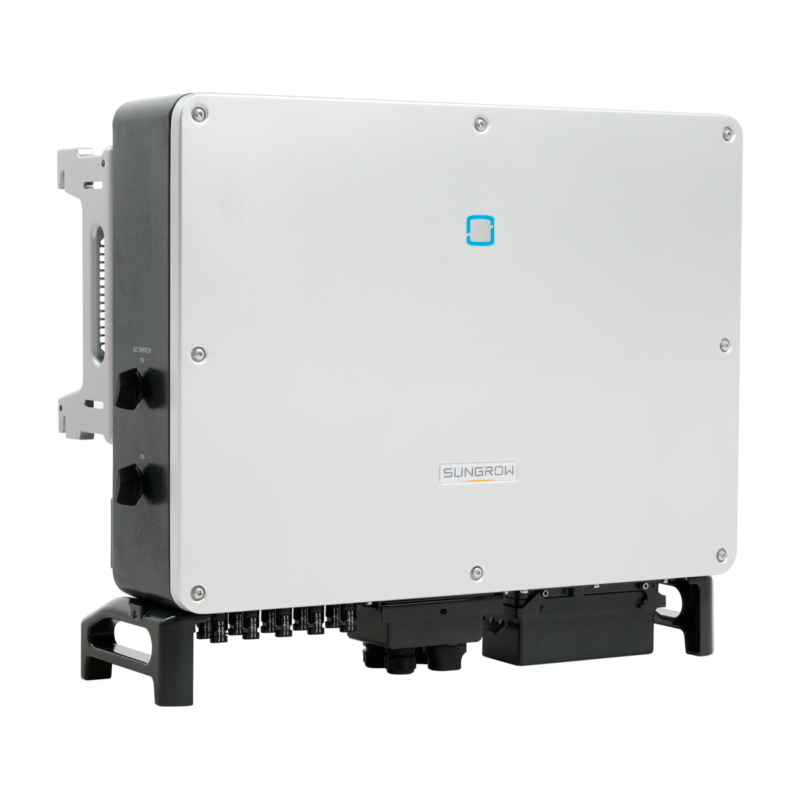

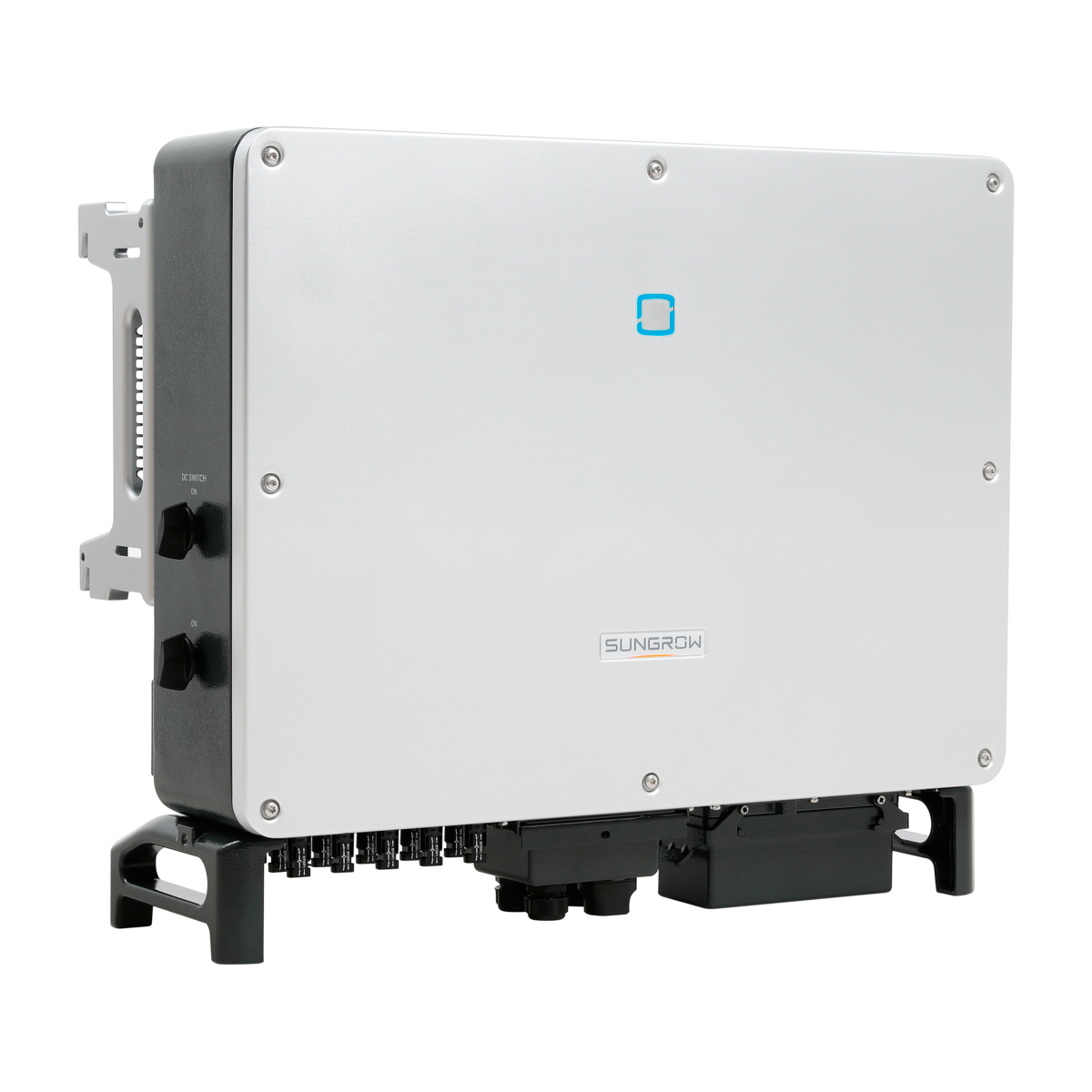

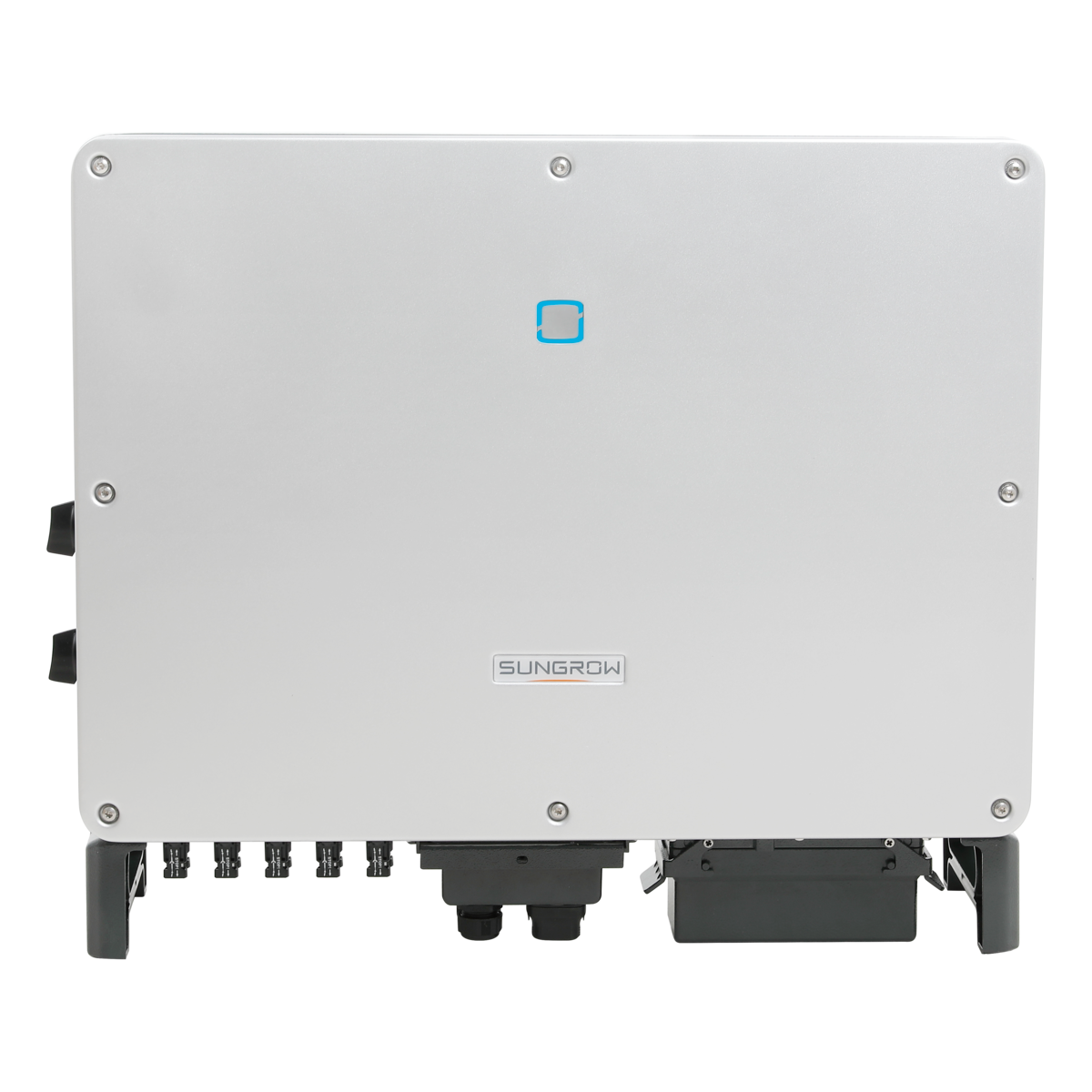

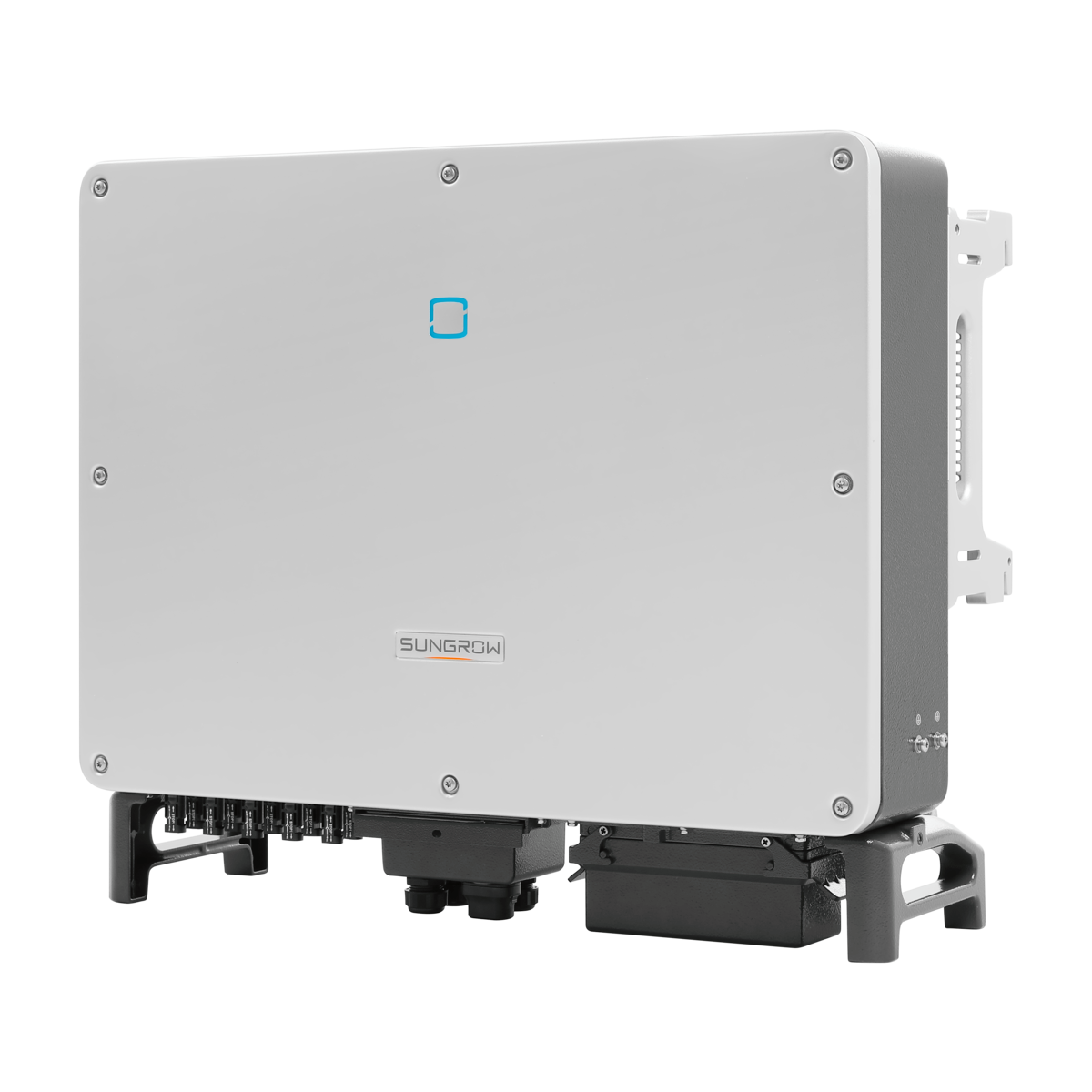

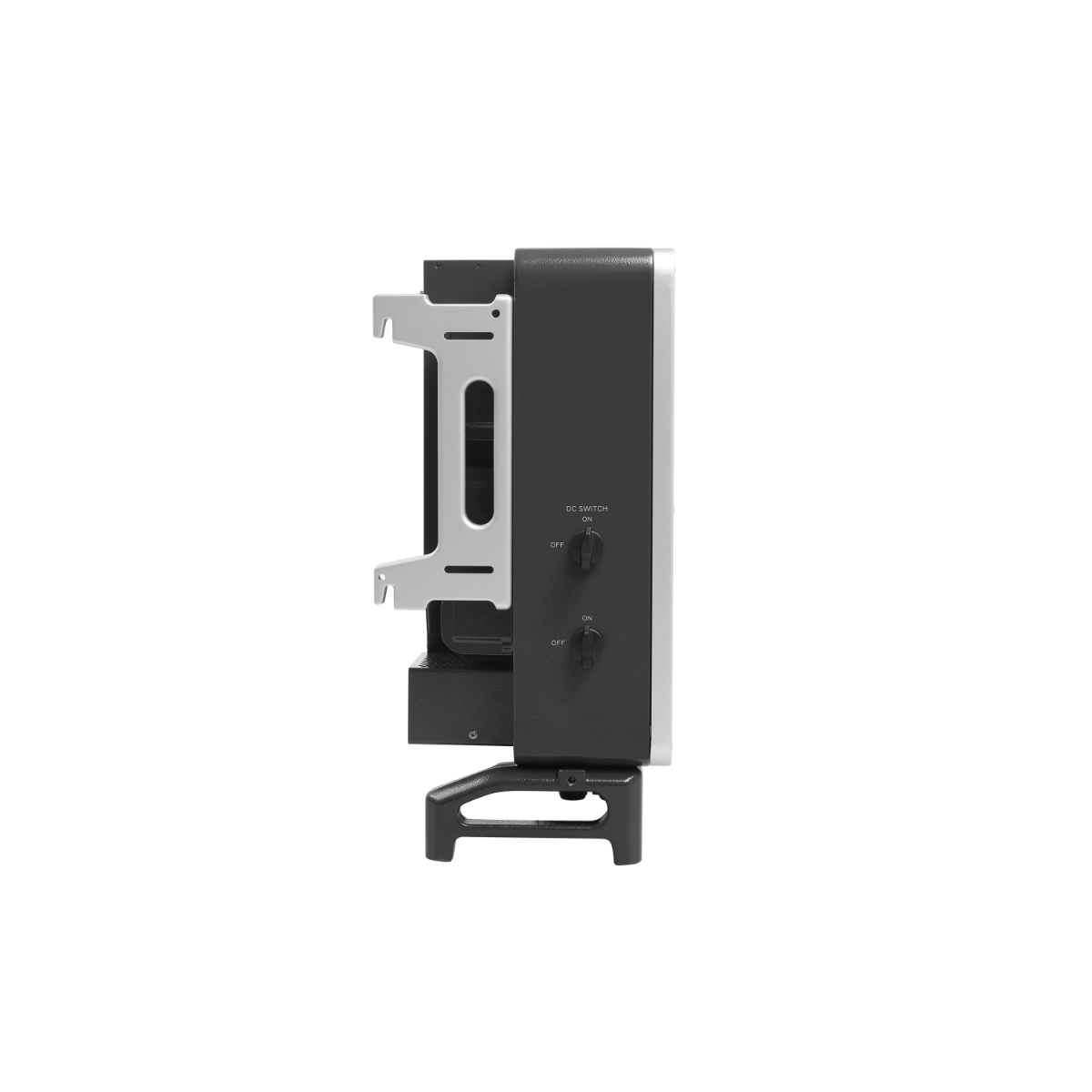

Sungrow 3PH Inverter with AFCI 40KW (SG40CX-V112)
 2.363,03 VAT 0% Add to cart

Sungrow 3PH Inverter with AFCI 40KW (SG40CX-V112)

 2.363,03 VAT 0%

3 phase, 40kW, 4 MPPT, IP65, AFCI

1 in stock

This product is no longer available. Click Here for an alternative to this product.
The Sungrow 3PH Inverter with AFCI 40KW (SG40CX-V112) is a Multi-MPPT String Inverter for a 1000 Vdc system. The SG40CX-V112 has an Arc-Fault Circuit Interrupter (AFCI) + Surge Protection Device (SPD) type I and II.
This inverter comes in three different performance classes. The integrated NS protection and patented external AC connector make this inverter extremely easy to install and therefore unique in its class.
High yield
Up to 5 MPPTs with a maximum efficiency of 98.7%. Compatible with bifacial module. Built-in PID recovery function optional.
Cost-effective
Compatible with Al and Cu AC cables. DC 2 in 1 connection enabled. Cable-free communication with optional Wi-Fi.
Smart O&M
Touch commissioning and remote firmware upgrade. Online IV curve scan and diagnosis. Fuse-free design with smart string current monitoring.
Proven safety
IP66 and C5 protection. Type II EPD for both DC and AC. Meets global safety and net code.
ESTG is a wholesaler of inverters for solar panels and other renewable electrical items, such as charging stations, home batteries and thermal heating. With a wide range of A-brands, ESTG supplies installers throughout Europe.

Additional information

Item no.

SG40CX-V112

Merk

Sungrow

Manufacturer

Sungrow

Country of origin

China

Statistics code

85044086

Width (mm)

782

Height (mm)

645

Weight (kg)

58

Warranty in years

5

Number of phases

3 phases

Depth (mm)

310

Degree of protection (IP)

IP65

Inverter type

String

AC nom. output power (W)

4000

Number of MPPT

4

Suitable for outdoor installation

Yes

DC Switch

Yes

Transformer

No

Display

No

Wi-Fi

Optional

Ethernet

Yes

Arcing protection (AFCI)

Yes

Surge Protector

Type II DC & AC
